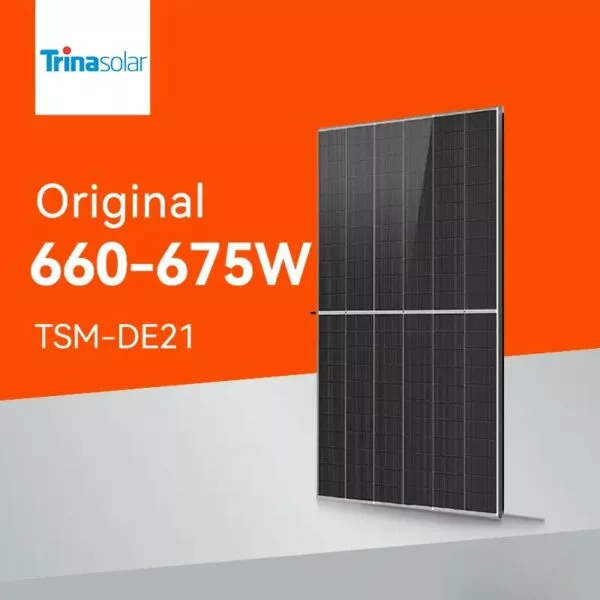

Trina Vertex Solar Panel Mono Crystalline 670w 665w 660W 650W

Trina Vertex Solar Panel Mono Crystalline 670w 665w 660W 650W

$99.90

Brand Name: Trina solar

Model No: TSM-DE21 665-670W

Connector: MC4-EVO2 / TS4

SKU: TSM-DE21 Category:
baufar-reviews-logos-01

Trina Vertex Solar Panel Mono Crystalline 670w 665w 660W 650W

  • High Efficiency
  • Durable Construction
  • Advanced Technology
  • User-Friendly Connectivity
  • Comprehensive Warranty
Trina Vertex Solar Panel MECHANICAL DATA
Module Dimensions
2384*1303*35 mm
Weight
33.9kg
Frame
35mm Anodized Aluminium Alloy
Glass
3.2mm, High Transmission, AR Coated Heat Strengthened Glass
Junction-Box
IP 68 rated
Cables

Photovoltaic Technology Cable 4.0mm (0.006 inches),

Portrait: 280/280 mm(11.02/11.02 inches)
Landscape: 1400/1400 mm(55.12/55.12 inches)
Connector
MC4-EVO2 / TS4
Cell Orientation
132 cells
ELECTRICAL DATA (STC)
Peak Power Watt Pmax(Wp)
650w
655w
660w
665w
670w
Power Tolerance (W)
0~+5
Max Power Voltage-Vmpp（V)
37.4
37.6
37.8
38.0
38.2
Max Power Current-Impp（A)
17.39
17.43
17.47
17.51
17.55
Open Circuit Voltage-Voc(V)
45.3
45.5
45.7
45.9
46.1
Short Circuit Current-Isc(A)
18.44
18.48
18.53
18.57
18.62
Module Efficiency(%)
20.9
21.1
21.2
21.4
21.6
