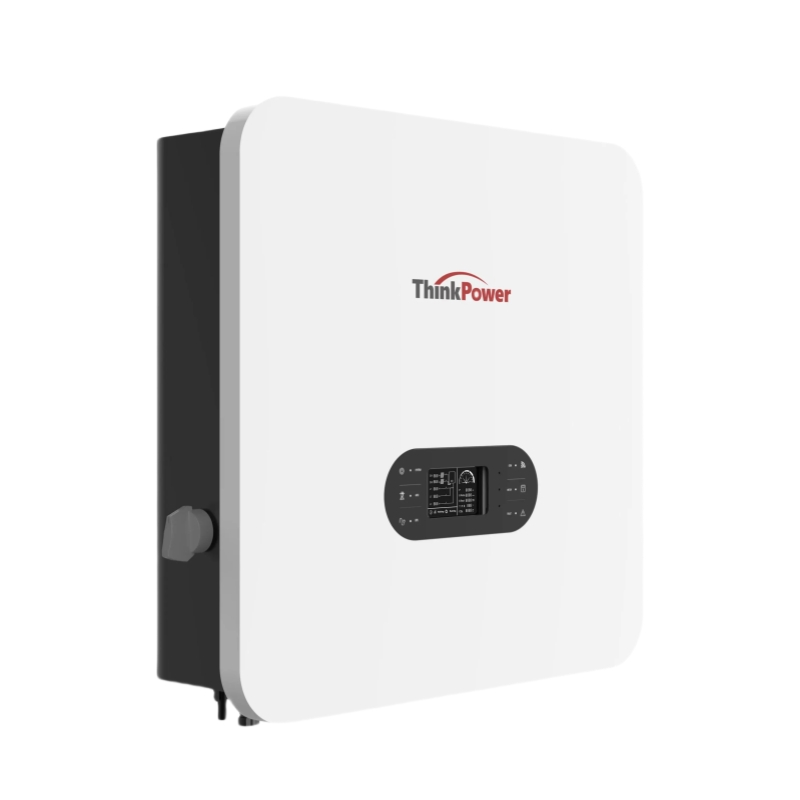

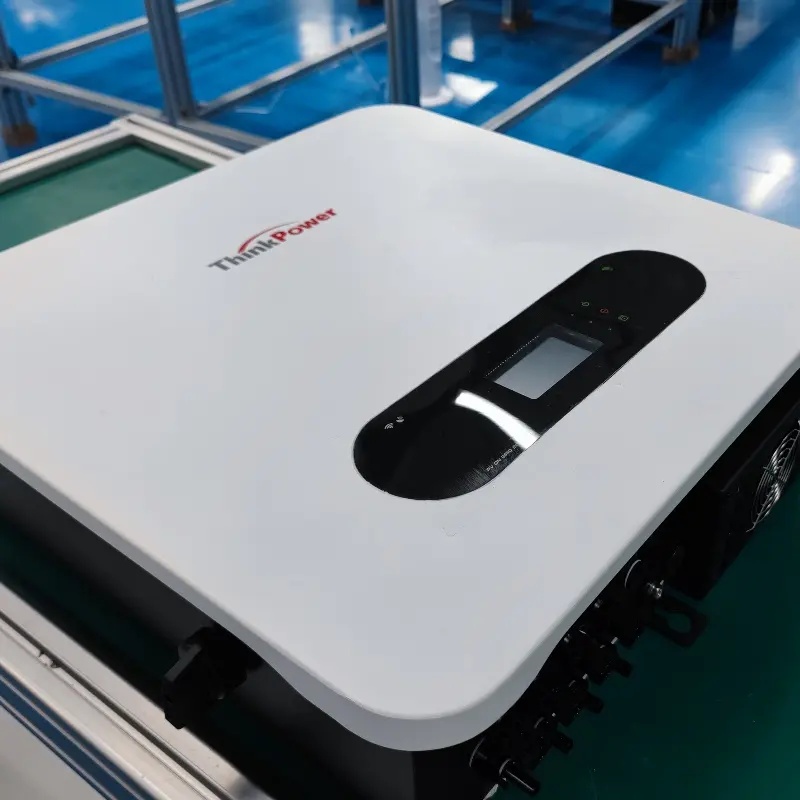

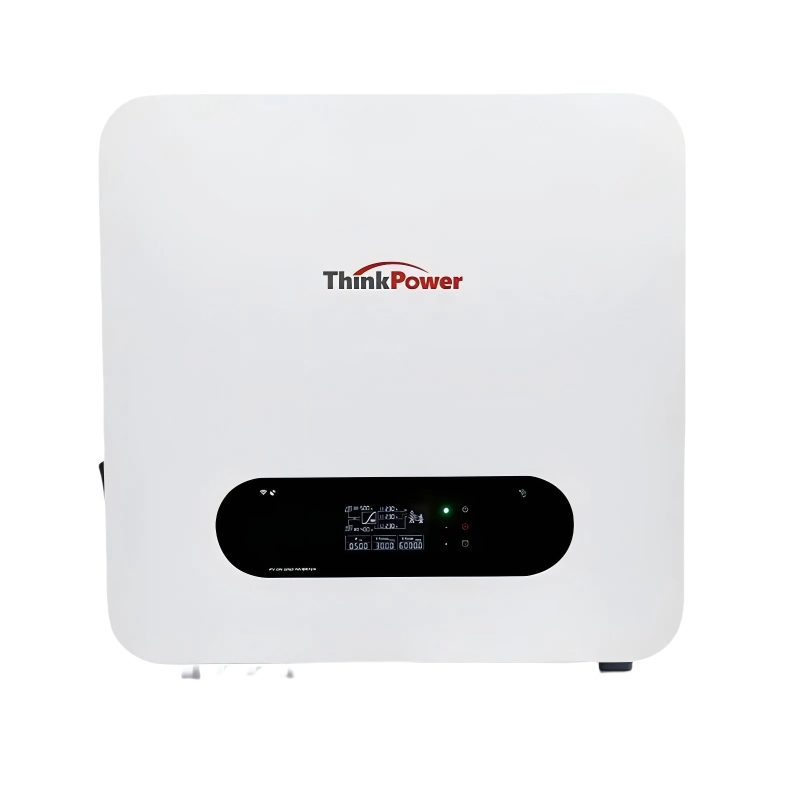

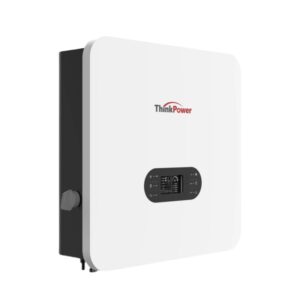

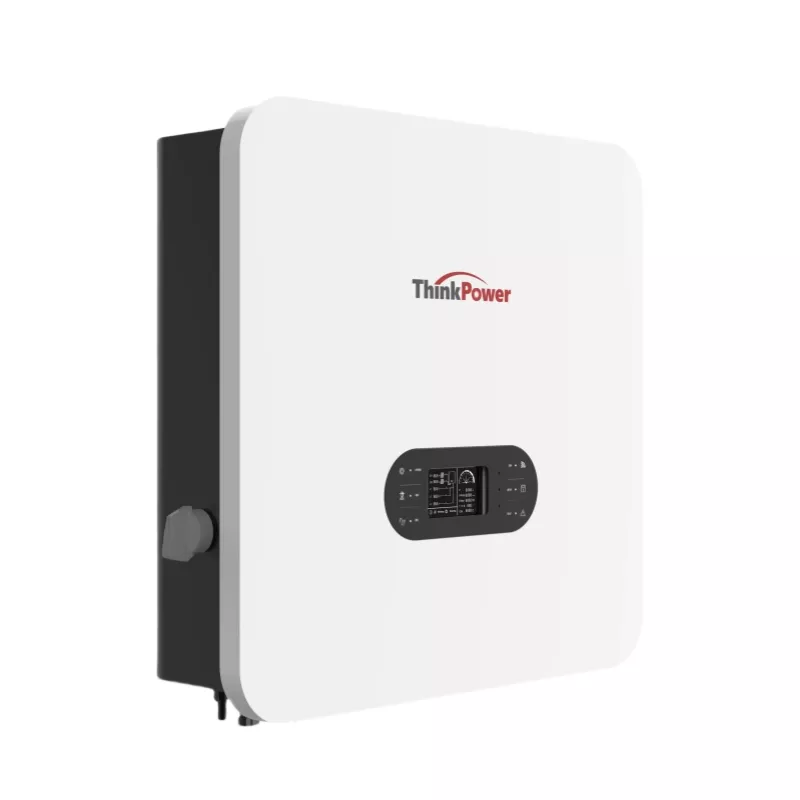

ThinkPower 25KW Inverter TP25KTL Three Phase Grid Tied

Name: ThinkPower 25KW Inverter TP25KTL Three Phase Grid Tied
SKU: TP25KTL
Availability: InStock

$528.00

Brand Name: ThinkPower

Model: TP25KTL

Highlights: Three Phase / 380V/50hz / 25KW Grid-tied Inverter / DC switch / WIFI module

SKU: TP25KTL Category: Solar Inverter

MODEL	TP25KTL
DC Input Data
Max DC Power	30kw(4 Piece)
Max DC Voltage	1000Vdc
Min Working Voltage	250Vdc
MPPT Voltage Range	200-850vdc
Max. Input Current	36A/26A
Max. Input Short Circuit Current	46A/34A.
No. of MPP Trackers	2
AC Output Side	ThinkPower 25KW Inverter TP25KTL
AC Nominal Power	25000w
Max AC Apparent Power	27500va
Max Output Current	36A
Nominal AC output	50/60 Hz; 400 Vac
AC output range	45/55 Hz ; 280 ~ 490 Vac (Adj)
Power factor	0.8leading…0.8laging
Harmonics	<1.5% .
Grid type	<3 W/N/PE
Max. Efficiency	98.5%
Euro Efficiency	98.2%.
Safety and Protection
DC reverse-polarity protection	Yes
DC breaker	Yes
DC/AC SPD	Yes.
Leakage current protection	Yes
Insulation Impedance Detection	Yes
Residual Current protection	Yes
Communication Interface	RS485/WiFi/GPRS.
Topology	Transformerless
Humidity	0-95%, no condensation.
Operating temperature range	-25 ~ +60ºC
Dimensions (W/H/D)	520510160mm
Weight	23kg
Display	LCD
Ingress Protection(IP) Rating	IP65
Warranty	Standard 5 years; 7/10 years optional.
Certificates	CQC, VDE-AR-N4105, VDE0126-1-1, AS4777, IEC61727, IEC62116.
