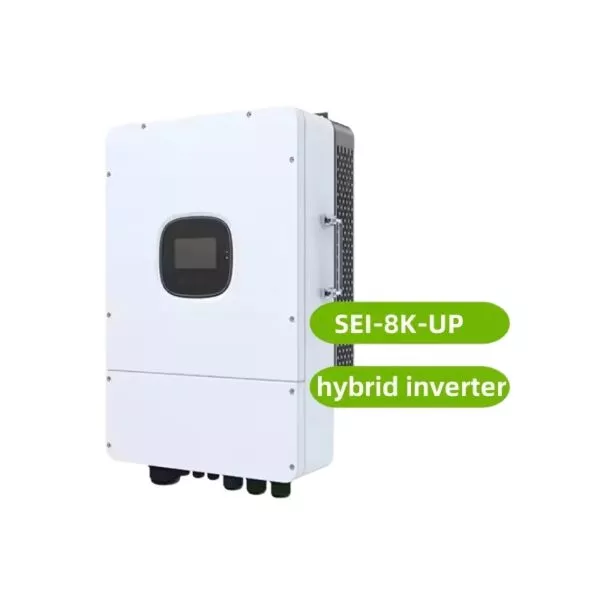

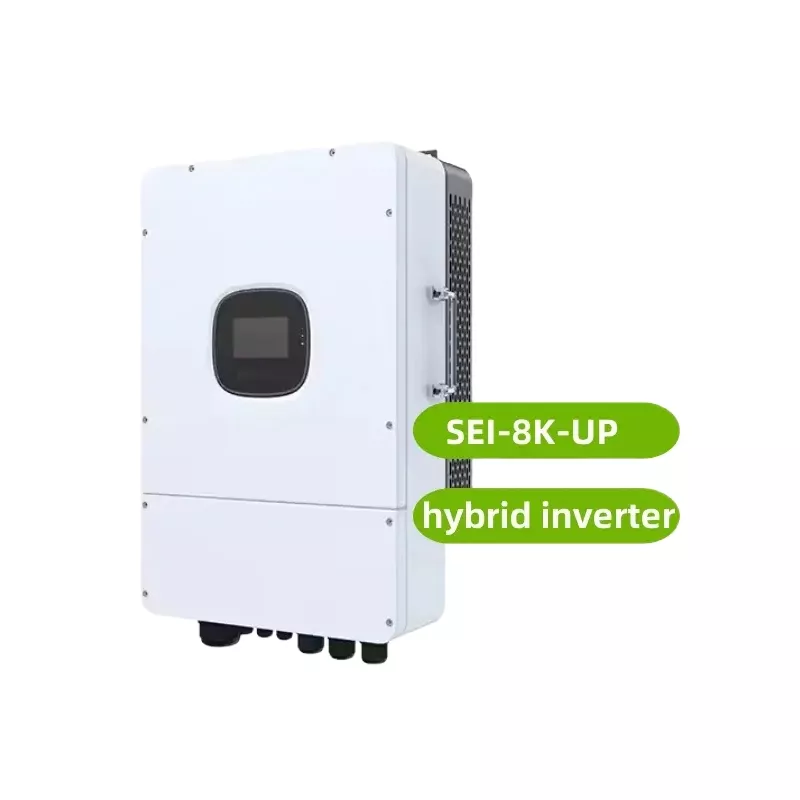

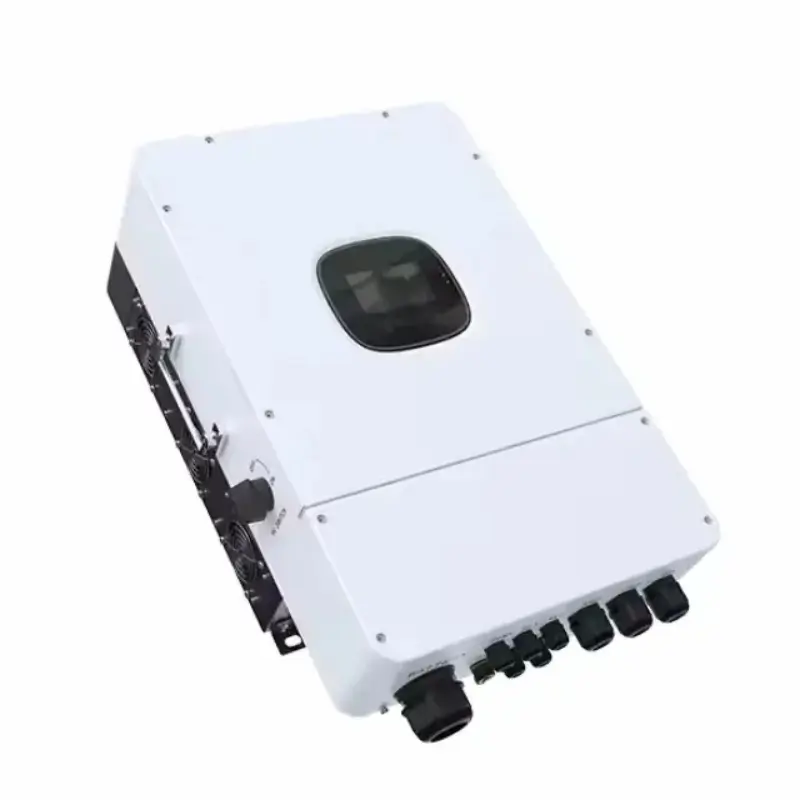

SRNE SEI-8K-UP 8kw Hybrid Solar Inverter Single Phase US

SRNE SEI-8K-UP 8kw Hybrid Solar Inverter Single Phase US

$1,688.00

Brand Name: SRNE

Model: SEI-8K-UP

Type: Single Phase Hybrid Solar Inverter

INQUIRY NOW

SKU: SEI-8K-UP Category: Tag:

baufar-reviews-logos-01

SRNE SEI-8K-UP 8kw hybrid solar inverter single phase US

  • Efficiency
    • Advanced MPPT with up to 99.9% efficiency for optimal energy utilization.
    • Supports up to 22A * 2 PV input current, accommodating high solar panel capacity.
  • Safety
    • Integrated software and hardware security protection for enhanced safety.
    • Certified with multiple safety approvals to ensure reliable operation.
  • All-in-One Functionality
    • Up to 200A charging current for faster battery charging.
    • Supports Li-ion battery BMS communication for seamless integration and control.
  • Reliability
    • Delivers high-quality pure sine wave AC power output.
    • Built with an IP65 protection degree, ensuring durability in various environments.
  • User-Friendly Design
    • Industrial design with a modern aesthetic look that complements installation spaces.
    • Easy to install and simple to operate, reducing setup time and effort.
  • Intelligent Features
    • Exclusive Li-ion battery BMS dual activation for optimized battery usage.
    • Time-slot function to save costs by utilizing peak-valley electricity pricing.





MODEL SRNE SEI-8K-UP

Inverter Output

Rated Output Power 8800w
Max. Peak Power 17600VA
Rated Output Voltage 230V AC Single Phase
Load Capacity of Motors 5HP
Rated AC Frequency 50/60HZ

PV Input

SRNE SEI-8K-UP 8kw
Number of MPPT 2
Max. PV Array Power 5500W+5500W
Max. Input Current 22A+22A
MPPT Operating Voltage Range 125 – 425Vdc

Battery

Battery Type Lead-acid / Li-on / User-defined
Rated Battery Voltage 48v
Max. PV Charging Current 200A
Max. Mains Charging Current 120A
Max. Alternator Charging Current 60A
Max. Hybrid Charging Current 200A

General

Number of Parallel 1 – 6 units
Dimensions (W/H/D) 670×440×240mm
Weight 37kg
Ingress Protection(IP) Rating IP67
Warranty 5 Years.

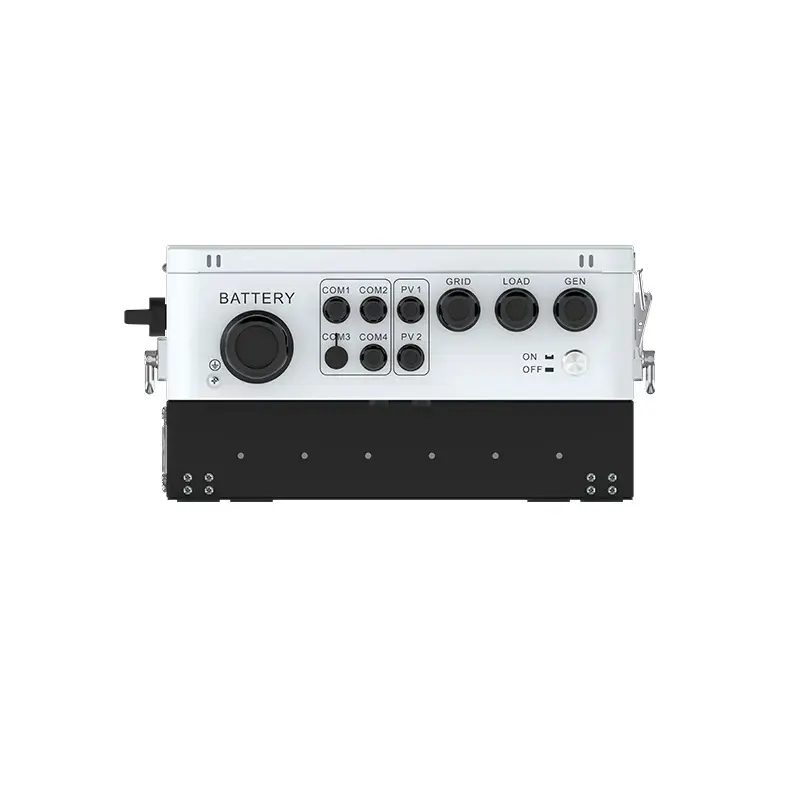

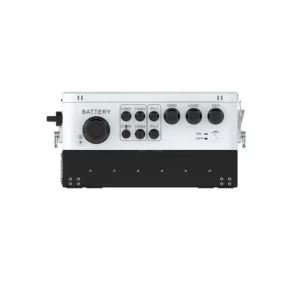

Embedded Interfaces RS485 / CAN / USB / Dry contact.
