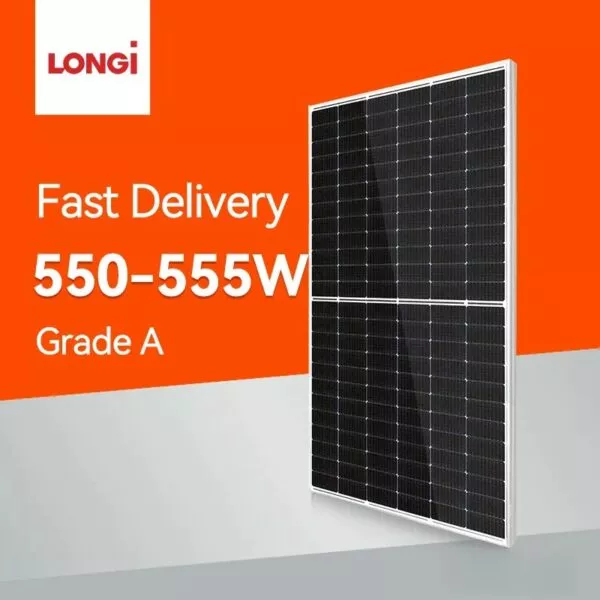

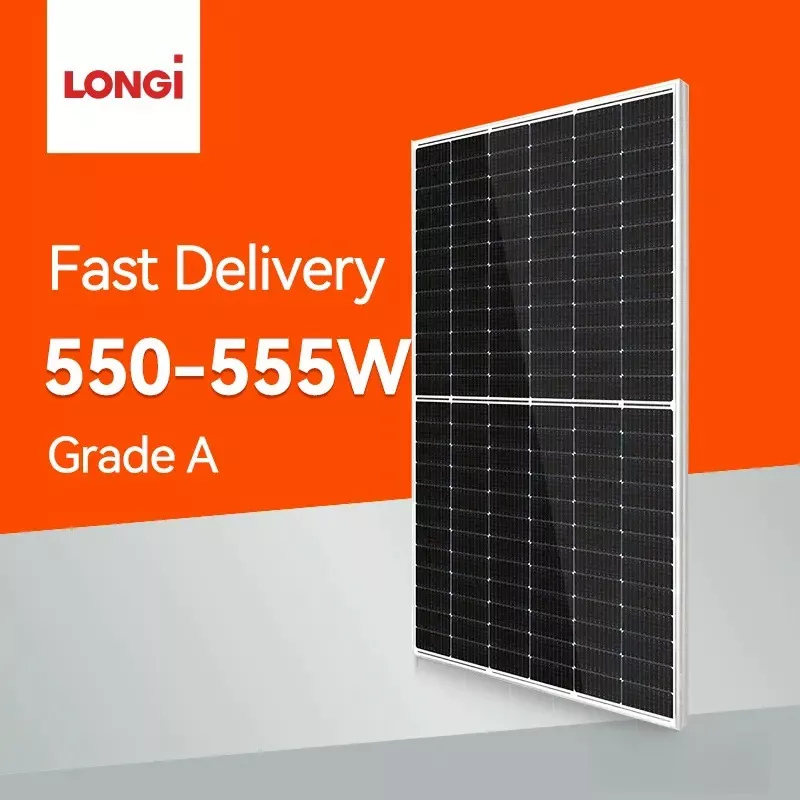

Longi Solar Photovoltaic Modules 540w 555w 545w 550w 560w
Longi Solar Photovoltaic Modules 540w 555w 545w 550w 560w
Longi Solar Photovoltaic Modules 540w 555w 545w 550w 560w
$65.80
Module Efficiency: 21.30%
Product Warranty: 25 Years
Power Warranty: 25 Years
Longi Solar Photovoltaic Modules LR5-72HPH 182mm cells 555w 545w 550w 560w
Original Longi solar Hi-MO 5, Grade A
144 cells solar panel 545w 550w 555w 560w
|
Longi Solar Photovoltaic Modules MECHANICAL DATA
|
|||
|
Module Dimensions
|
2278*1134mm*35mm
|
||
|
Weight
|
27.2kg
|
||
|
Glass
|
Single glass, 3.2mm coated tempered glass
|
||
|
Junction-Box
|
IP 68, three diodes
|
||
|
Cables
|
4mm2, positive 400 / negative 200mm, length can be customized
|
||
|
Cell Orientation
|
144cells(6*24)
|
||
|
ELECTRICAL CHARACTERISTICS
|
||||
|
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
|
||||
|
Model
|
LR5-72HPH-545M
|
LR5-72HPH-550M
|
LR5-72HPH-555M
|
LR5-72HPH-560M
|
|
Max. Power
|
545
|
550
|
555
|
560
|
|
Open Circuit Voltage
|
49.65
|
49.80
|
49.95
|
50.10
|
|
Short Circuit Current
|
13.92
|
13.98
|
14.04
|
14.10
|
|
Max. Power Voltage
|
41.80
|
41.95
|
42.10
|
42.25
|
|
Max. Power Current
|
13.04
|
13.12
|
13.19
|
13.26
|
|
Efficiency²
|
21.1
|
21.3
|
21.5
|
21.7
|
