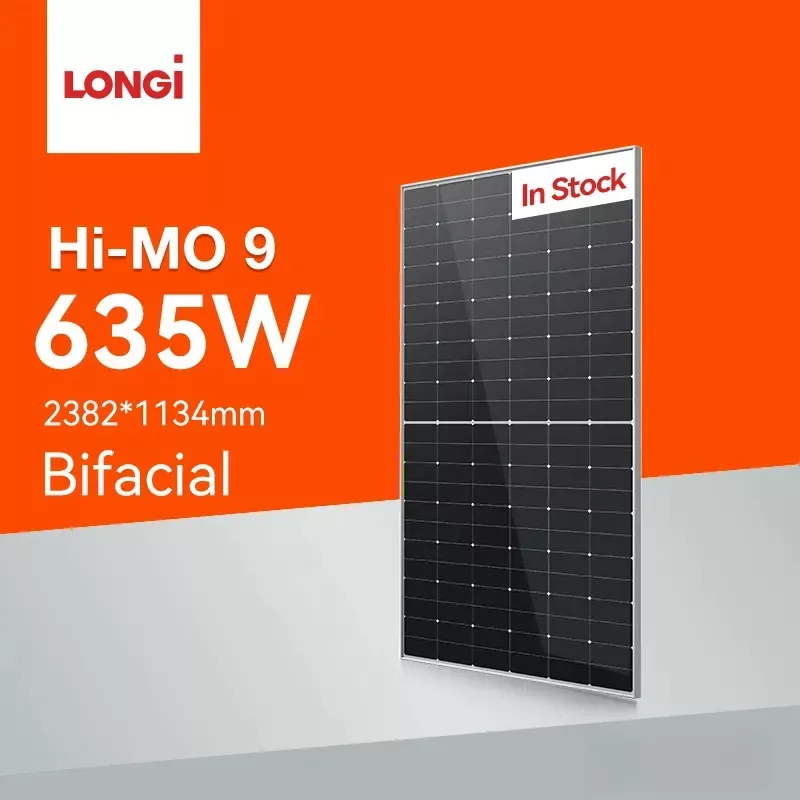

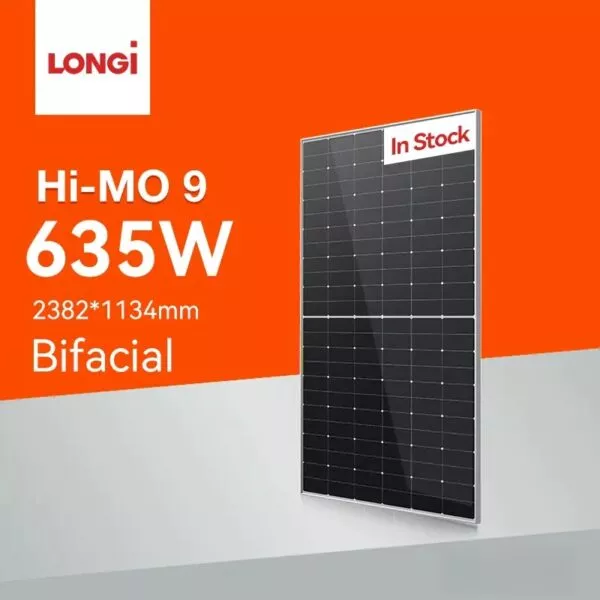

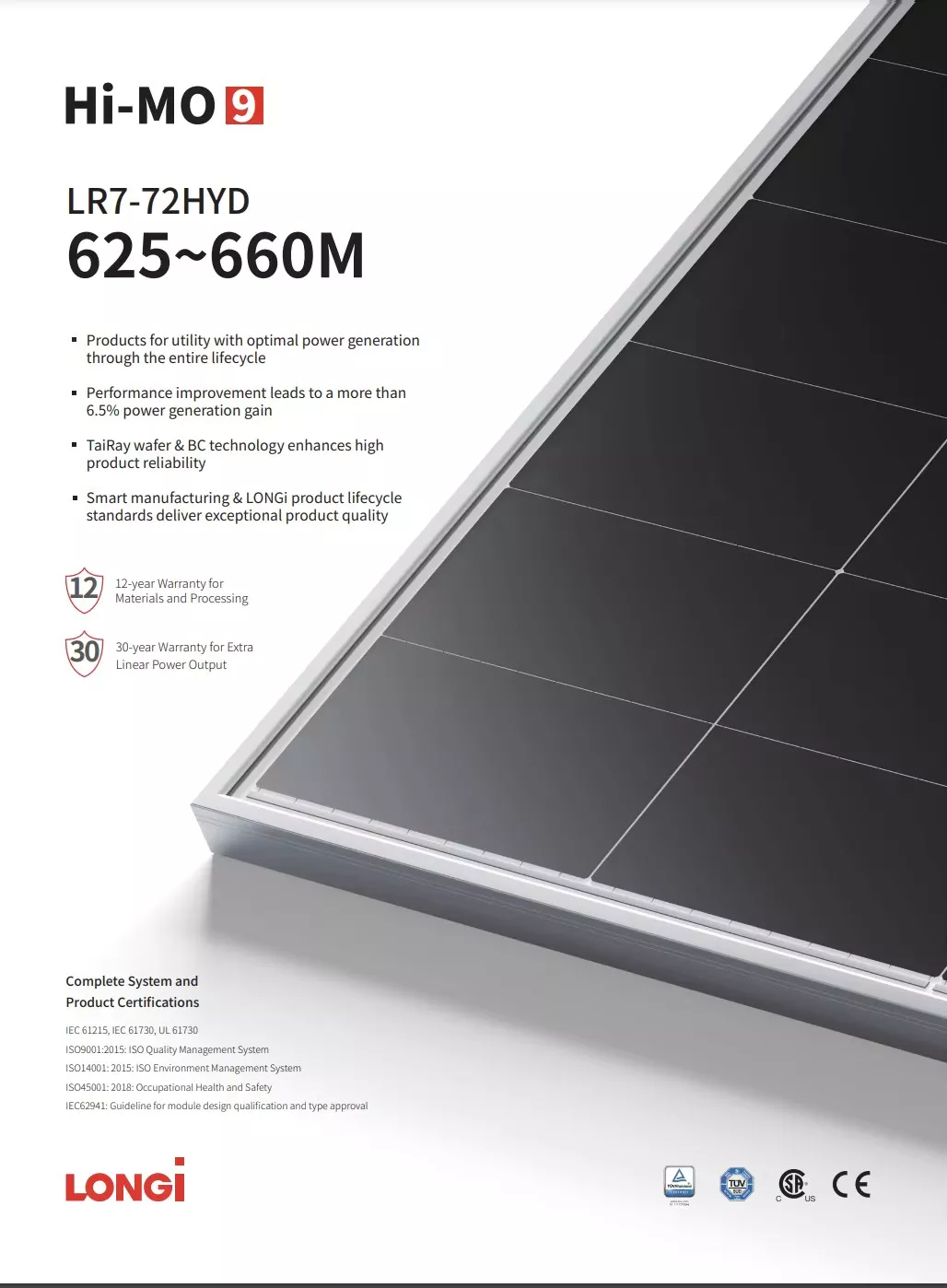

Longi Hi-MO 9 Solar Panel Bifacial Double Glass LR7-72HYD 635w 630w 625w 640w 645w 650w 660w
- Products for utility with optimal power generationthrough the entire lifecycle
- Performance improvement leads to a more than6.5% power generation gain
- TaiRay wafer & BC technology enhances highproduct reliability
- Smart manufacturing& LONGi product lifecyclestandards deliver exceptional product quality
Longi Hi-MO 9 Solar Panel MECHANICAL DATA | |||
Module Dimensions | 2382*1134mm*30mm | ||
Weight | 33.5kg | ||
Glass | Dual glass, 2.0+2.0mm semi-tempered glass | ||
Junction-Box | IP68, 3 diodes | ||
Cables | 4mm2, +400, -200mm~1400mm, length can be customized | ||
Cell Orientation | 144cells(6*24) |
Module Type | LR7-72HYD 625M-660M | |||||||
Maximum Power (Pmax/W) | 625 | 630 | 635 | 640 | 645 | 650 | 655 | 660 |
Maximum Power Voltage-VMPP(V) | 53.30 | 53.40 | 53.50 | 53.60 | 53.70 | 53.80 | 53.90 | 54.00 |
Maximum Power Current-IMPP(A) | 14.85 | 14.93 | 15.01 | 15.09 | 15.17 | 15.25 | 15.33 | 15.41 |
Open Circuit Voltage-VOC(V) | 44.16 | 44.26 | 44.36 | 44.46 | 44.56 | 44.65 | 44.75 | 44.85 |
Short Circuit Current-ISC(A) | 14.16 | 14.24 | 14.32 | 14.40 | 14.48 | 14.56 | 14.64 | 14.72 |
Module Efficiency η m (%) | 23.1 | 23.3 | 23.5 | 23.7 | 23.9 | 24.1 | 24.2 | 24.4 |
