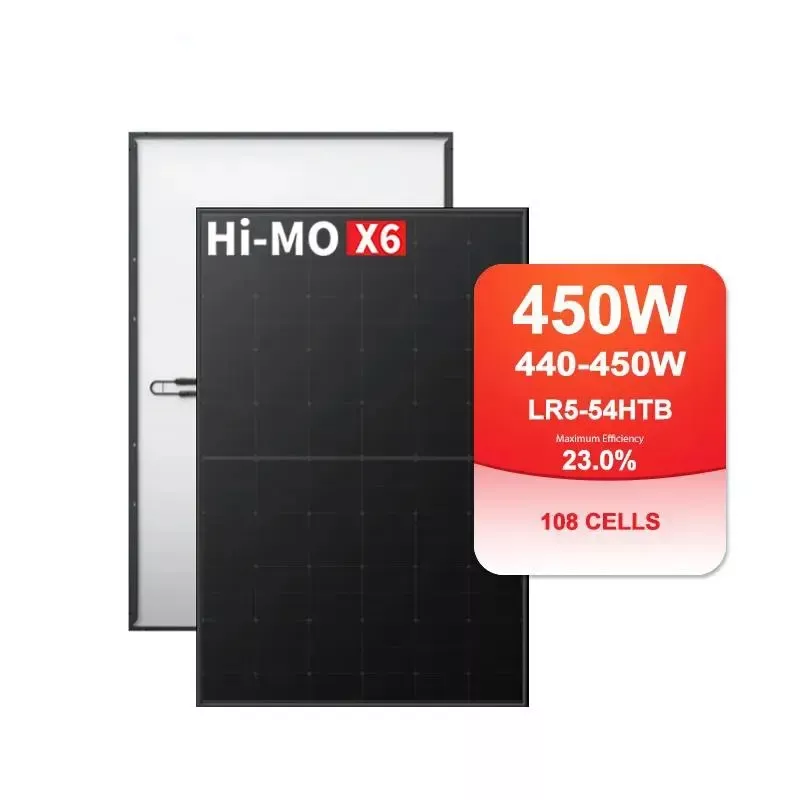

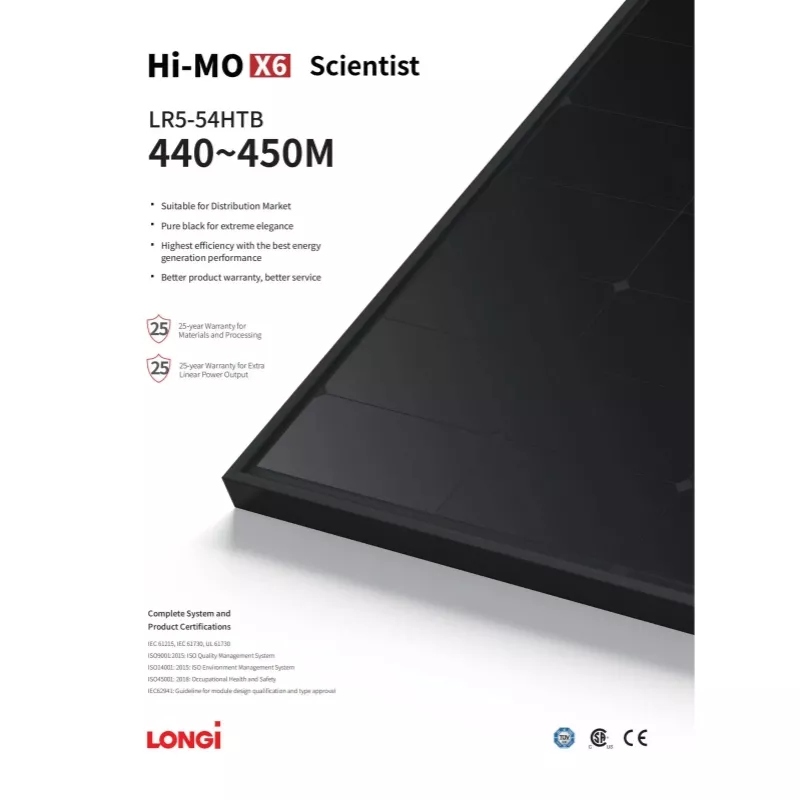

Longi Ultra Black HiMo X6 Pv Module LR5-54HTB HPBC Cells 420W 430W 440W 445W 450W
- Suitable for Distribution Market
- Pure black for extreme elegance
- Highest efficiency with the best energygeneration perormance
Mechanical Characteristics | |
Cell Orientation | 108 (6×18) |
Junction Box | IP68 |
Output Cable | 4mm², ±1200mm length can be customized |
Glass | Single glass, 3.2mm coated tempered glass |
Frame | Anodized aluminum alloy frame |
Weight | 20.8kg |
Dimension | 1722×1134×30mm |
SPECIFICATIONS(STC) | |||
Model Type | LR5-54HTB-440M | LR5-54HTB-445M | LR5-54HTB-450M |
Maximum Power(Pmax/W) | 440 | 445 | 450 |
Open Circuit Voltage(Voc/V) | 39.83 | 40.03 | 40.23 |
Short Circuit Current(Isc/A) | 14.15 | 14.23 | 14.31 |
Voltage at Maximum Power(Vmp/V) | 33.56 | 33.76 | 33.96 |
Current at Maximum Power (lmp/A) | 13.12 | 13.19 | 13.27 |
Module Efficiency (%) | 22.5 | 22.8 | 23.0 |
Operating Parameters | |
Operational Temperature | -40°C -+85°C |
Power Output Tolerance | 0-3% |
Voc and lsc Tolerance | ±3% |
Maximum System Voltage | DC1500V (IEC/UL) |
Maximum Series Fuse Rating | 25A |
Nominal Operating Cell Temperature | 45±2°C |
Protection Class | Class II |
Fire Rating | UL type 1 or 2 IEC ClassC |
