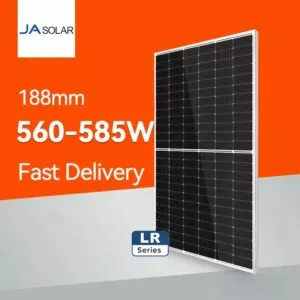

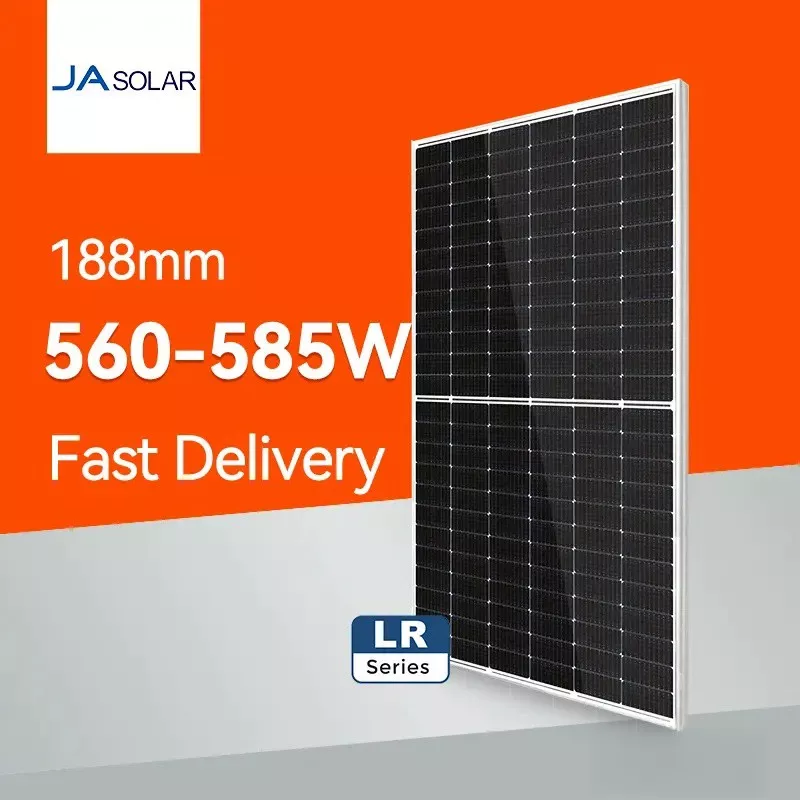

JA Solar Panel MBB Mono Half Cell JAM72S30 560w-585w
JA Solar Panel MBB Mono Half Cell JAM72S30 560w-585w
JA Solar Panel MBB Mono Half Cell JAM72S30 560w-585w
$82.80
Higher output power
Lower LCOE
Less shading and lower resistive loss
Better mechanical loading tolerance
JA Solar Panel MBB Mono Half Cell JAM72S30 560w 555w 550w 565w 580w 585w
|
MECHANICAL SPECIFICATION
|
|||
|
Format
|
2333mm x 1134mm x 35mm
|
||
|
Weight
|
28kg±3%
|
||
|
Cell
|
144(6 x 24) monocrystalline cells
|
||
|
Junction Box
|
IP68, 3 diodes
|
||
|
Cable
|
4mm2, 12 AWG
|
||
|
JA Solar Panel MBB Mono Half Cell JAM72S30 ELECTRICAL CHARACTERISTICS
|
|||||
|
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
|
|||||
|
Model
|
570W
|
575W
|
580W
|
585W
|
|
|
Open Circuit Voltage
|
Voc
|
50.68V
|
50.86V
|
50.04V
|
50.22V
|
|
Short Circuit Current
|
Isc
|
14.37A
|
14.44A
|
14.50A
|
14.56A
|
|
Max. Power Voltage
|
Vmp
|
41.87V
|
42.05V
|
42.24V
|
42.42V
|
|
Max. Power Current
|
Imp
|
13.62A
|
13.67A
|
13.73A
|
13.79A
|
|
Efficiency²
|
η
|
21.5%
|
21.7%
|
21.9%
|
22.1%
|
