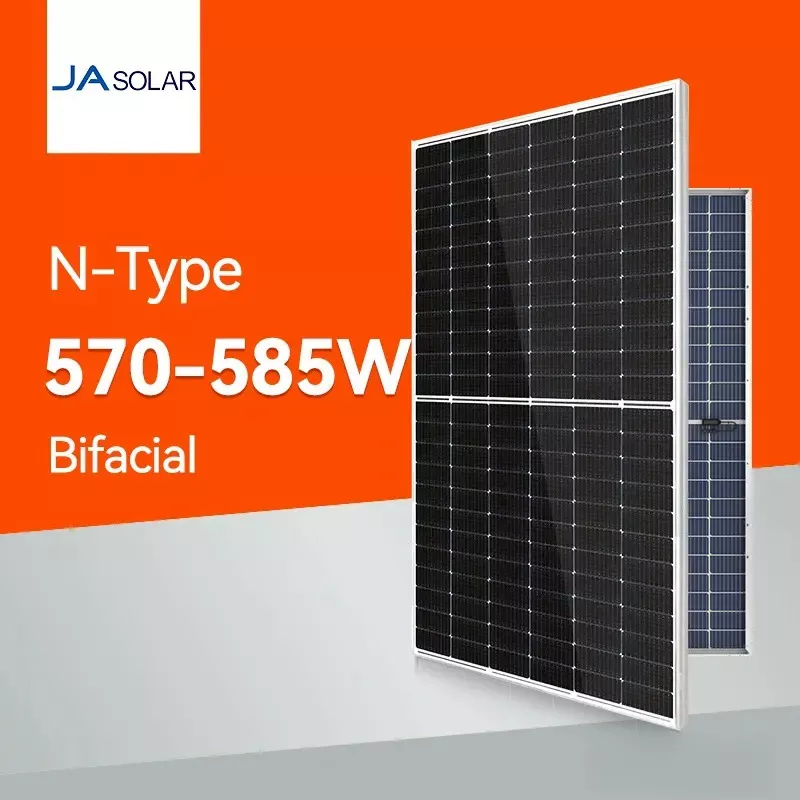

JA Solar 16BB N-type Solar Panel Bifacial Deepblue 4.0 580w 575W 570W
MECHANICAL SPECIFICATION | |||
Format | 2278mm x 1134mm x 30mm | ||
Weight | 31.8kg±3% | ||
Cell | 144(6 x 24) monocrystalline cells | ||
Junction Box | IP68, 3 diodes | ||
Cable | 4mm2, 12 AWG |
JA Solar 16BB N-type ELECTRICAL CHARACTERISTICS | |||||
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | |||||
Model | 565W | 570W | 575W | 580W | |
Open Circuit Voltage | Voc | 51.30V | 51.52V | 51.73V | 51.95V |
Short Circuit Current | Isc | 13.69A | 13.74A | 13.79A | 13.84A |
Max. Power Voltage | Vmp | 43.42V | 43.62V | 43.82V | 44.02V |
Max. Power Current | Imp | 13.01A | 13.07A | 13.12A | 13.17A |
Efficiency² | η | 21.9% | 22.1% | 22.3% | 22.5% |
