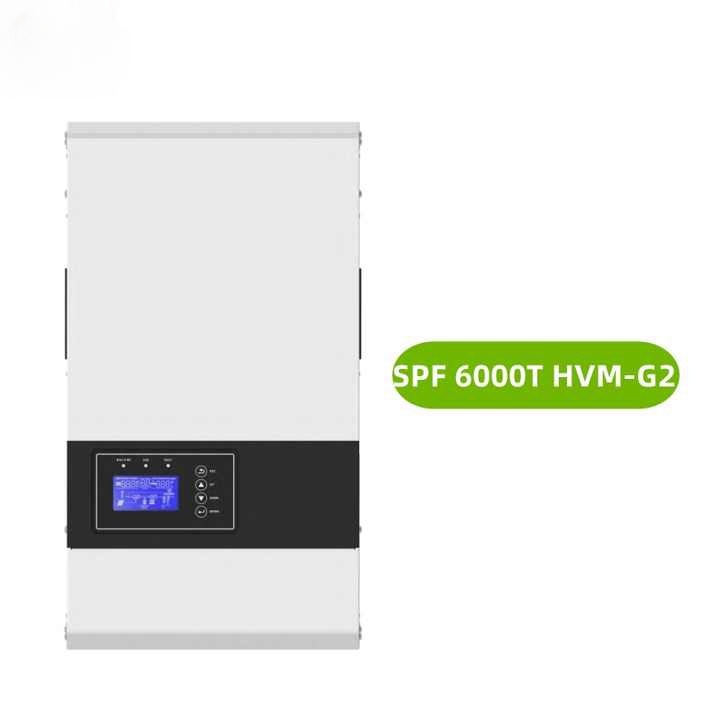

Growatt 6KW Off-grid Inverter SPF 6000T HVM-G2
Growatt 6KW Off-grid Inverter SPF 6000T HVM-G2
Growatt 6KW Off-grid Inverter SPF 6000T HVM-G2
$914.00
Brand Name:Growatt
Model:SPF 6000T HVM-G2
Growatt 6KW Off-grid Inverter SPF 6000T HVM-G2
- Industry-leading efficiency up to 94%
- Extended surge rating suitable for motor loads
- Wide PV input voltage range up to 250Vdc
- Parallel for high scalability
- Load segment control to maximize battery runtime for critical devices
- Warranty extend to 5 years
| MODEL | SPF 6000T HVM-G2 |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid. |
| INVERTER OUTPUT | |
| Rated Power | 6KW. |
| Surge Rating | 18KW |
| Waveform | Pure sine wave/ same as input (bypass mode). |
| Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional). |
| Output Frequency | 50Hz/60Hz +/-0.3 Hz. |
| Inverter Efficiency(Peak) | >93.5%. |
| Transfer Time | 10ms |
| SOLAR CHARGER | |
| Maximum PV Charge Current | 50A |
| Maximum PV Array Power | 4500W. |
| Number of independent MPP trackers | 1/1. |
| MPPT Range @ Operating Voltage(VDC) | 60~200VDC. |
| Maximum PV Array Open Circuit Voltage | 250VDC. |
| Maximum Efficiency | >97% |
| AC INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 184~272VAC(UPS);154~272VAC(APL) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Max. Charging Current | 60A. |
| MECHANICAL SPECIFICATIONS | |
| Protection Degree | IP20 . |
| Dimensions (W/H/D) | 365/650/247mm |
| Weight | 38.5kg |
| OPERATING ENVIRONMENT | |
| Altitude | <2000 |
| Operation Temperature Range | -20°C to 50°C |
