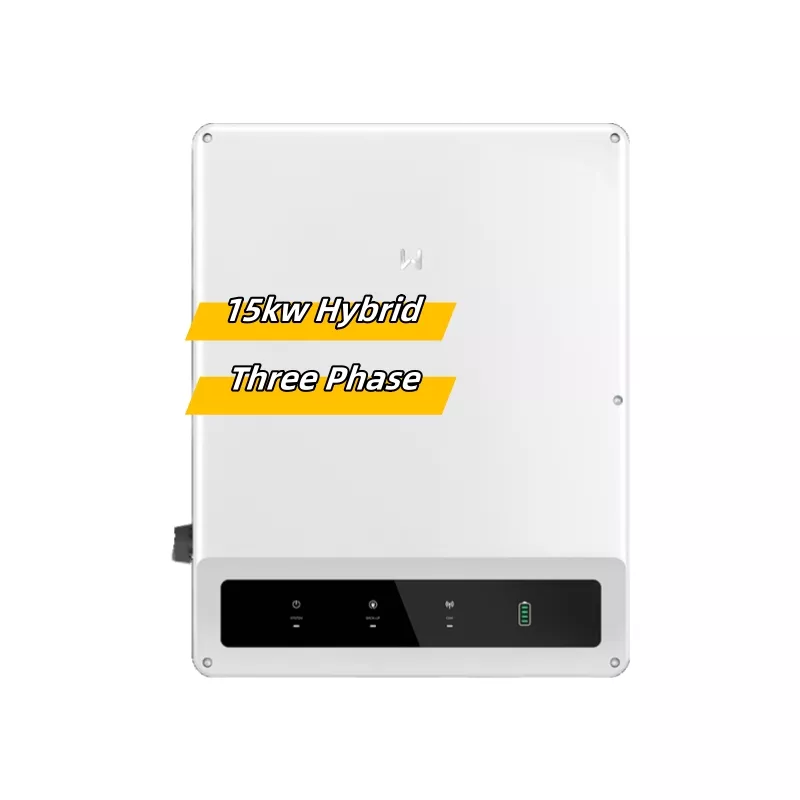

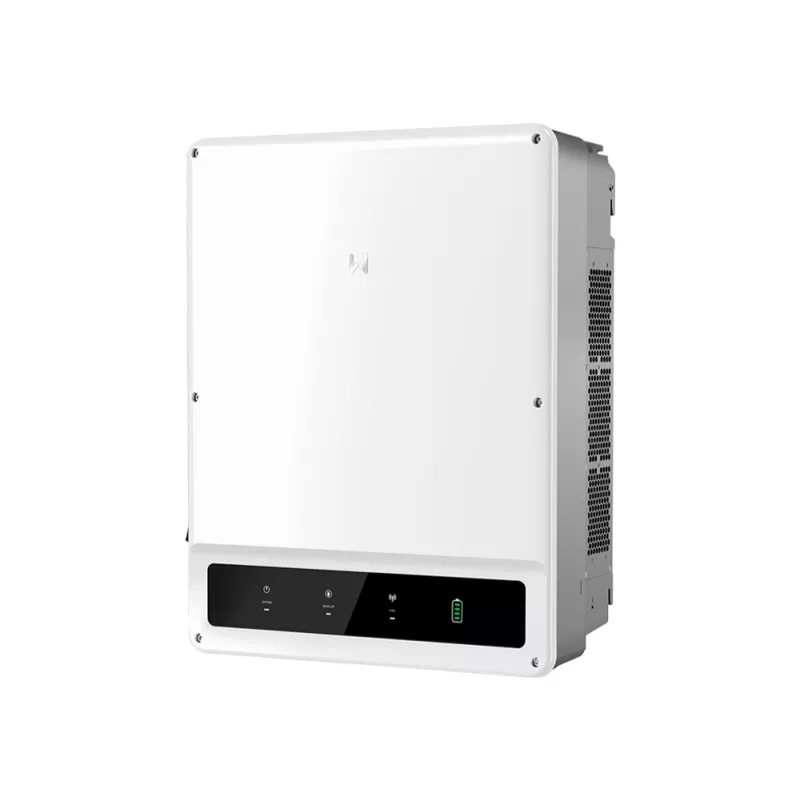

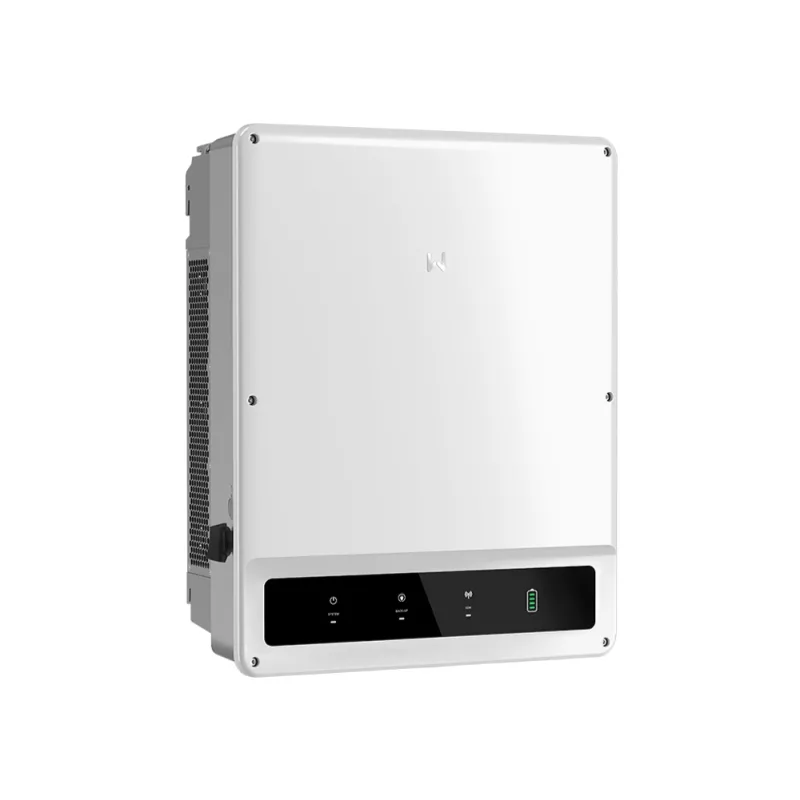

Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase
Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase
Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase
$1,458.00
Brand Name: Goodwe
Model: 15K-ET
Type: Solar Hybrid Inverter Three Phase
Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase
- High Efficiency and Flexibility: Supports up to 150% DC input oversizing and 15A DC input current per string, allowing for greater energy harvest and compatibility with high-power modules.
- Enhanced Safety: Integrated with Type II surge protection on the DC side and optional Arc Fault Circuit Interrupter (AFCI), providing upgraded safety and reliability for the PV system.
- Smart Control and Monitoring: Features an integrated dry contact for external load control, enabling flexible activation of devices like heat pumps to optimize energy consumption.
| MODEL | 15K-ET |
|---|---|
Battery Input Data |
|
| Battery Type | Li-on |
| Nominal Battery Voltage (V) | 500 |
| Battery voltage range (V) | 200-800 |
| Start-up Voltage (V) | 200 |
| Number of Battery Input | 1 |
| Max. Continuous Charging Current (A) | 50 |
| Max. Continuous Discharging Current (A) | 50. |
| Max. Charging Power (W) | 15000 |
PV String Input Data |
|
| Max. Input Voltage (V) | 37500 |
| MPPT Operating Voltage Range (V) | 200 ~ 850 |
| Start-up Voltage (V) | 200 |
| Nominal Input Voltage (V) | 600 |
| Max. Input Current per MPPT (A) | 30 |
| Max. Short Circuit Current per MPPT (A) | 38 |
| Number of MPP Trackers | 3. |
| Number of Strings per MPPT | 2 / 2 / 2 |
AC Output Side |
Goodwe Hybrid Inverter 15K-ET |
| Nominal Output Power (W) | 15000 |
| Nominal Output Apparent Power (VA) | 15000 |
| Max. AC Active Power (W) | 16500 |
| Max. AC Apparent Power (VA) | 15000 |
| Nominal Output Voltage (V) | 380 / 400, 3L / N / PE |
| Output Voltage Range (V) | 0 ~ 300 |
| Nominal AC Grid Frequency (Hz) | 50/60. |
| AC Grid Frequency Range (Hz) | 45 ~ 65 |
| Max. Output Current (A) | 39.9 |
| Max. Efficiency | 98.0% |
| Euro Efficiency | 97.5%. |
Equipment Protection |
|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated. |
| AC Overvoltage Protection | Integrated . |
| DC Switch | Integrated . |
| DC Surge Protection | Type III (Type II Optional). |
| AC Surge Protection | Type III (Type II Optional). |
| Communication | RS485, WiFi, LAN or 4G or Bluetooth (Optional) |
| Operating Temperature Range | -30 to +60℃ |
| Relative Humidity | 0~100% |
| Max. Operating Altitude (m) | 4000 |
| Dimensions (W/H/D) | 520 × 660 × 220mm |
| Weight | 54kg |
| Noise | <30 dB(A) |
| Cooling Method | Natural Convection |
| Operating temperature range | –40 °C~60 °C (> 45°C, derating). |
| Inverter Topology | Non-isolated |
| Self-consumption at Night (W) | <3. |
| Ingress Protection(IP) Rating | IP66 |
| Warranty | 5 Years. |
| Mounting Method | Wall Mounted. |
