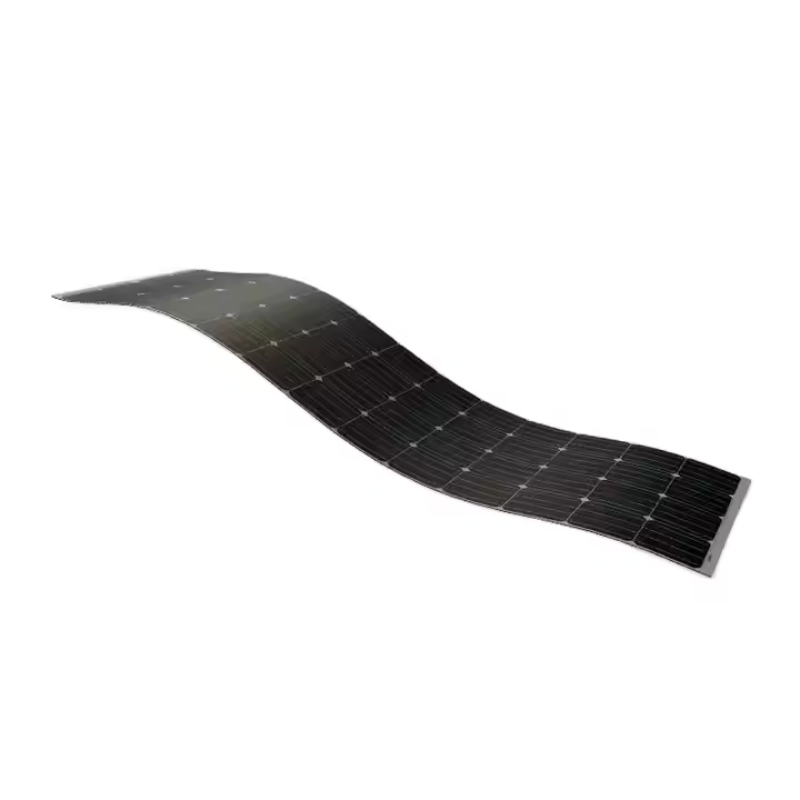

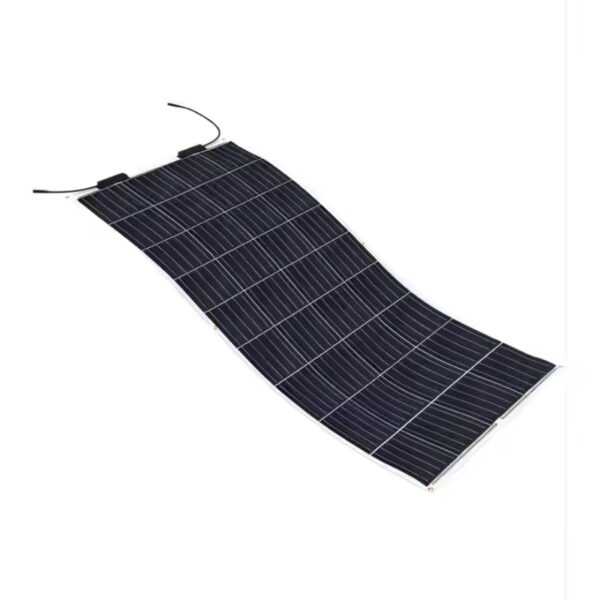

Flexible Solar Panel 380w 390w 410w Mono Solar Module
$89.00 – $103.00
Model: BAUSP380PC
Warranty: 15 years quality, 25 years power
Max Power Range: 380 – 410w
Certification: CE, ISO9001/ISO1400, TUV, CQC
Flexible Solar Panel 380w 390w 410w Mono Solar Module
The light transmittance is ≥91%, far higher than similar products, and no barrier for photoelectric conversion.
Ultra-high UV blocking ability ensures lasting protection of power generation efficiency for 25 years.
| CONDITION | New |
|---|---|
| PRODUCT NAME: | Flexible Solar Panel 380w |
| MODEL TYPE: | BAUSP380PC |
| MAX POWER: | 380 |
| MAX-OPERATING VOLTAGE: | 30.23V |
| MAX-OPERATING CURRENT: | 12.59a |
| OPEN CIRCUIT VOLTAGE: | 36v |
| SHORT CIRCUIT CURRENT: | 13.42a |
| MODULE EFFICIENCY: | 19.2% |
| DIMENSION(L*W*H): | 1737*1142*2.5mm |
| WEIGHT: | 5.8kg |
| BACKBOARD SPECIFICATION: | backboard(white) |
| CELL: | 108(6*18)/10bb P type single crystalline |
| CELL TYPE: | P-type Battery |
| ENCAPSULAT MATERIAL: | EVA |
| FRAME: | none |
| WEIGHT PER UNIT AREA: | 2.92kg/㎡ |
| POWER PER UNIT AREA: | 191.6-206.7W/㎡ |
| CONNECTOR: | MC4 Compatible |
| JUNCTION BOX: | IP68 |
| CABLE SPECIFICATIONS: | 4m㎡, 400mm or customized |
| BENDING RADIUS: | 0.5m |
| NOMINAL MODULE OPERATING: | 42 ± 2 ℃ |
| TEMPERATURE COEFFIENT OF PMAX: | -0.38%/℃ |
| TEMPERATURE COEFFIENT OF VOC: | -0.28%/℃ |
| TEMPERATURE COEFFIENT OF ISC: | 0.02%/℃ |
| MAXIMUM SYSTEM VOLTAGE: | DC1500v (IEC) |
| MAXIMUM SERIES FUSE RATING: | 20a |
| OPERATING TEMPERATURE RANGE: | -40℃ — +85℃ |
| Weight | 6 kg |
|---|---|
| Dimensions | 180 × 120 × 1 cm |
| Power | 380, 385, 390, 395, 400, 405, 410 |
