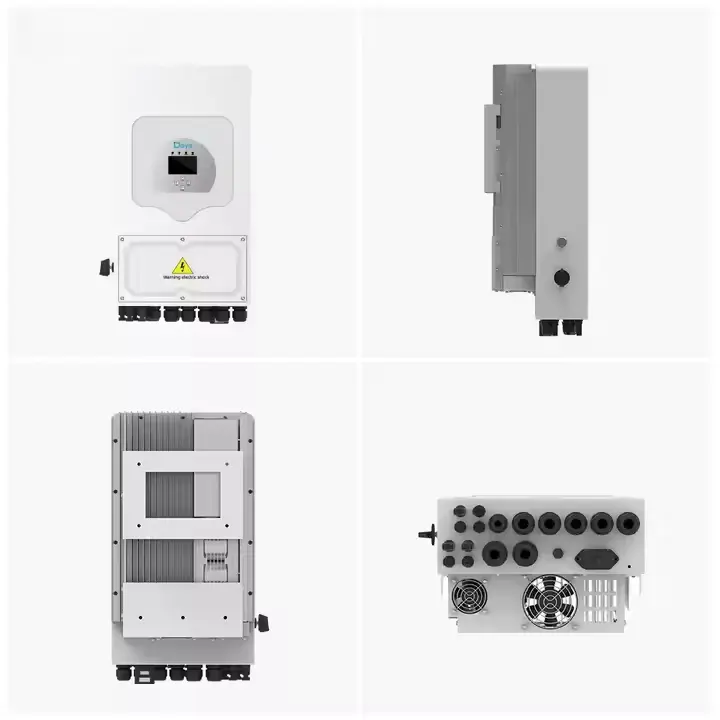

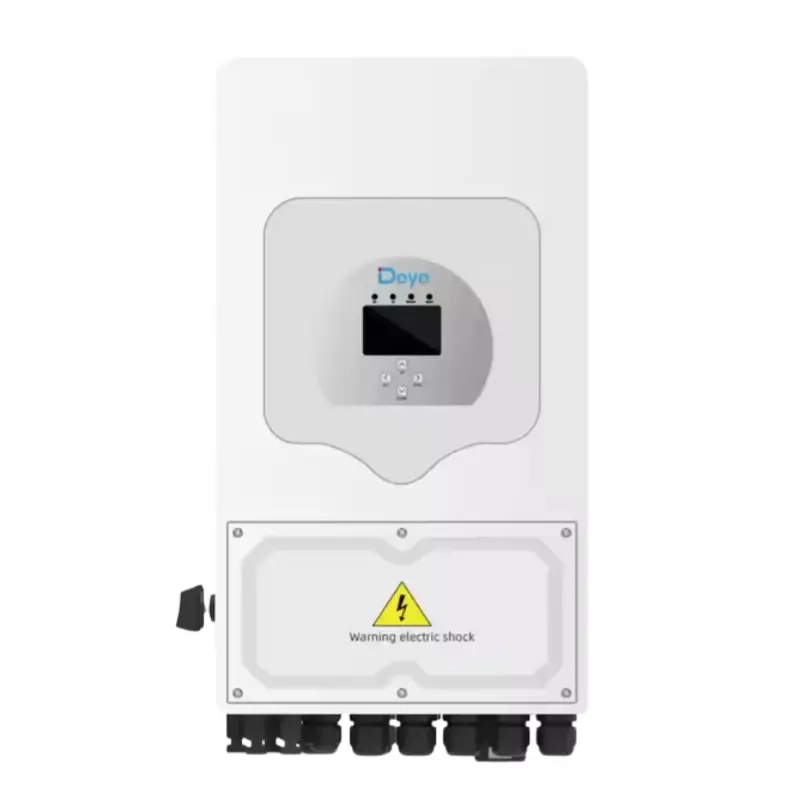

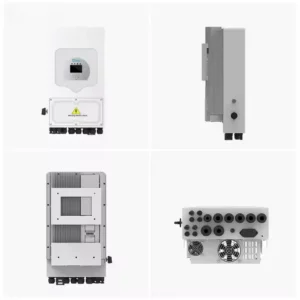

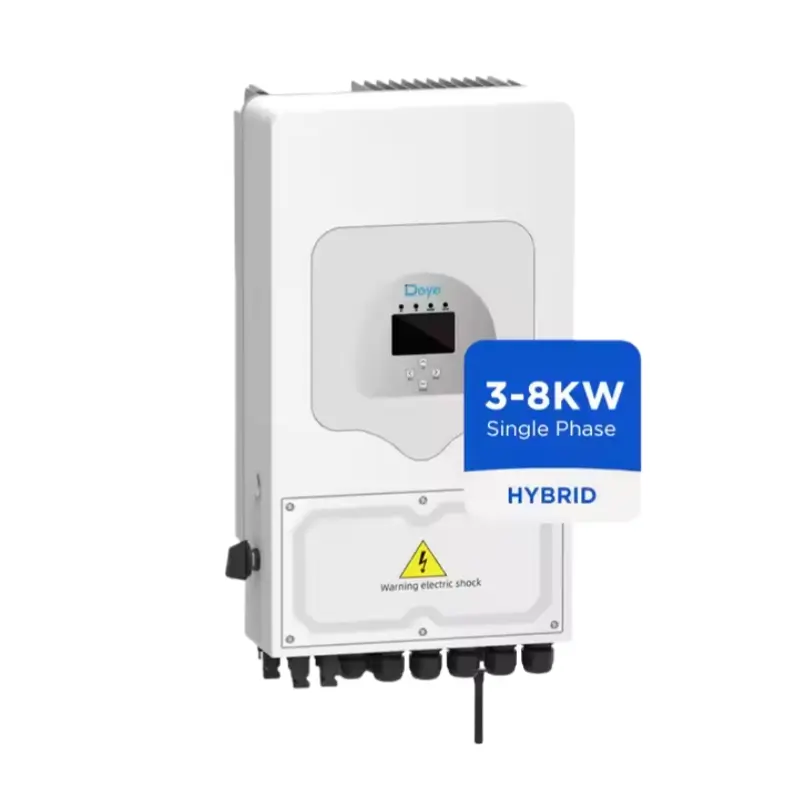

Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter
Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter
Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter
$899.00
Brand Name:Deye
Model: SUN-6K-SG05LP1-EU
Type: Single Phase Hybrid Solar Inverter
Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter with Battery Supported
- Colorful touch LCD, IP65 protection degree
-
AC couple to retrofifit existing solar system
-
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
-
Max. charging/discharging current of 190A
-
6 time periods for battery charging/discharging
-
Support storing energy from diesel generator
| MODEL | SUN-6K-SG05LP1-EU |
|---|---|
PV String Input Data |
|
| Max. PV Access Power | 12kw. |
| Max PV Input Power | 9.6kw |
| Max PV Input Voltage | 500v |
| Start-up Voltage | 125v |
| MPPT Voltage Range | 150-425v |
| Rated PV Input Voltage | 370v |
| Max. Operating PV Input Current | 13+13A |
| Max. Input Short Circuit Current | 17+17A. |
| No. of MPP Trackers | 2/1+1 |
AC Input/Output Data |
|
| Rated AC Input/Output Active Power | 6kW |
| Max AC Input/Output Apparent Power | 6.6kVa |
| Peak Power (off-grid) | 2 times of rated power,10s. |
| Rated AC Input/Output Current | 27.3/26.1 |
| Max AC Input/Output Current | 30/28.7 |
| RMax Continuous AC Passthrough (grid to load) | 40A. |
| Rated Input/Output Voltage/Range | 220V/230 0.85Un-1.1Un |
| Grid Connection Form | L+N+PE |
| THDi | <3% (@100% load). |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| DC Injection Current | <0.5%ln |
| Power Factor Adjustment Range | 0.8 leading-0.8lagging |
| Max. Efficiency | 97.6%. |
Battery Input Data |
|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40-60v |
| Max.Charging Current | 135A |
| Max.Discharging Current | 135A |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of battery input | 1 |
| Communication Interface | RS485/RS232/CAN. |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| Operating Temperature Range | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude | 2000m |
| Dimensions (W/H/D) | 3300×5800×2320mm |
| Weight | 24.9kg |
| Noise | ＜30 dB(A) |
| Type Of Cooling | Intelligent air cooling |
| Operating temperature range | –30 °C~60 °C (> 50°C, derating). |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC). |
| Ingress Protection(IP) Rating | 65 |
| Warranty | 5 Years. |
| Safety / EMC standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2. |
Grid Regulation
IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105
Deye SUN-6K-SG05LP1 Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
