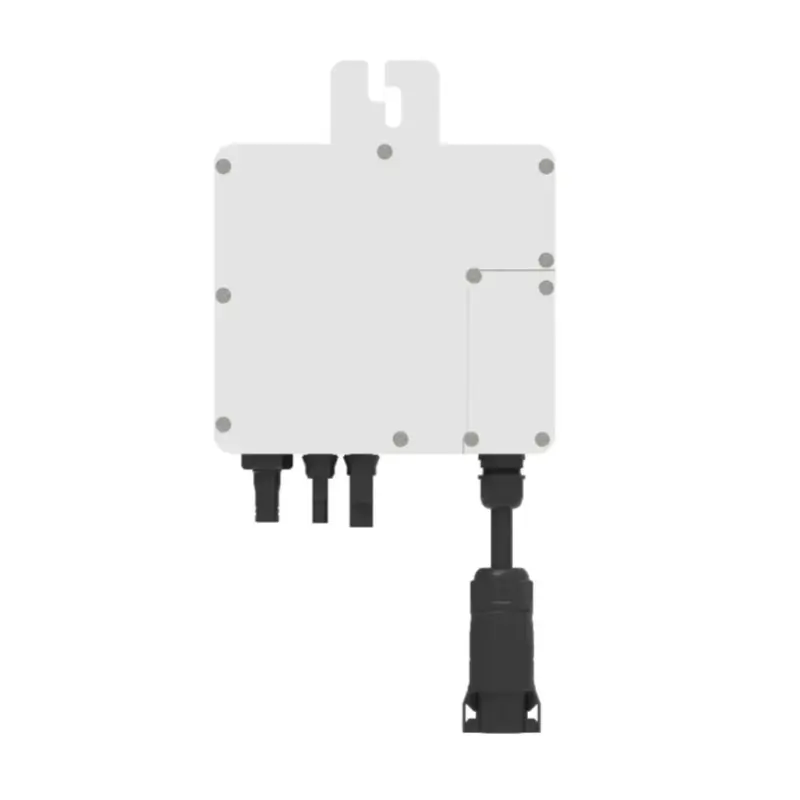

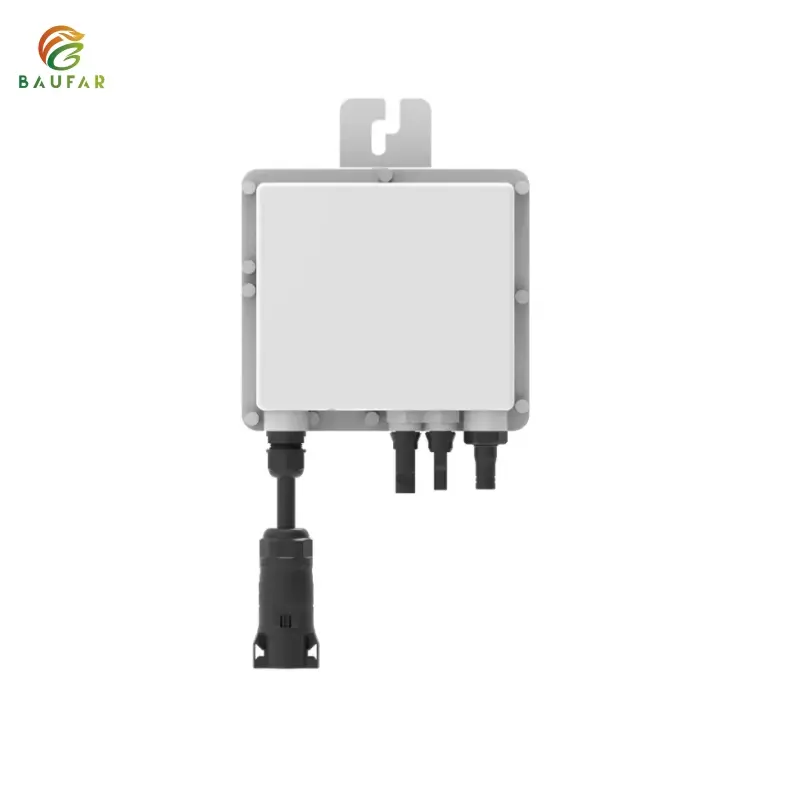

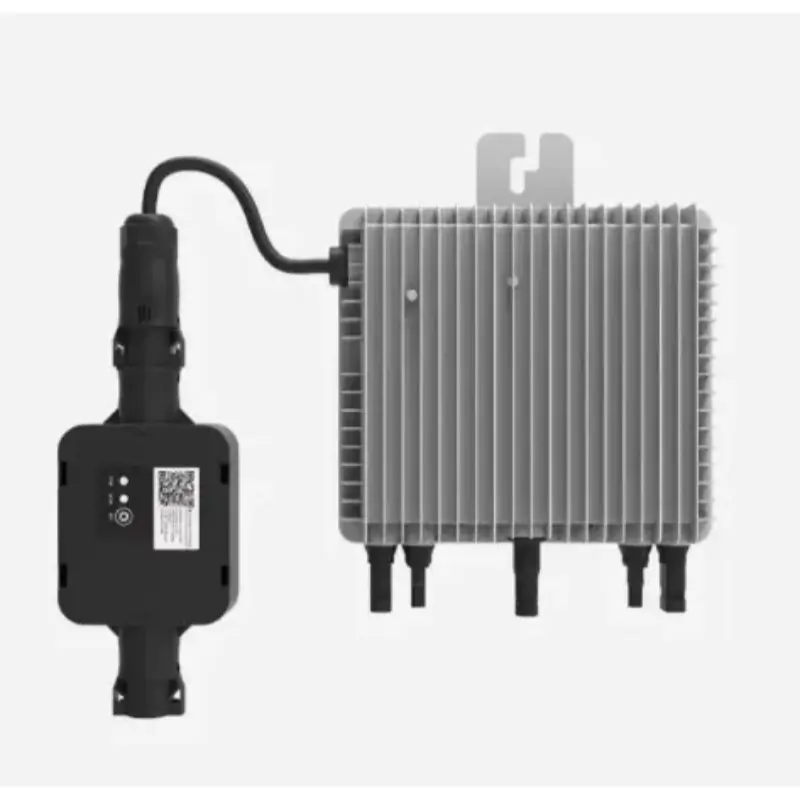

Deye Micro Inverter 300W Single Phase SUN-M30G4-EU-Q0

Name: Deye Micro Inverter 300W Single Phase SUN-M30G4-EU-Q0
SKU: SUN-M30G4-EU-Q0
Availability: InStock

$89.00

Brand Name: Deye

Model: SUN-M30G4-EU-Q0

Type: Single Phase 1 MPPT

SKU: SUN-M30G4-EU-Q0 Category: Solar Inverter

1 MPP tracker, module level monitoring
IP67 protection degree
WIFI communication
Rapid shutdown function
Easy installation, suitable for quick-plug balcony PV system
<100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety
Complete NS protection with self-check function
External relay advantage with low temperature, long life, easier maintenance
25 years design lifetime and 15 years warranty
With integrate WIFI

MODEL	SUN-M30G4-EU-Q0
PV String Input Data
Max PV Input Power	210-420w
Max PV Input Voltage	60v
Start-up Voltage	20v
MPPT Voltage Range	25-55v
Rated PV Input Voltage	42.5v
Max. Operating PV Input Current	19.5A
Max. Input Short Circuit Current	13A.
No. of MPP Trackers	1/1
AC Output Side	Deye Micro Inverter 300W
Rated AC Input/Output Active Power	300W
Max AC Input/Output Apparent Power	300Va
Rated AC Input/Output Current	1.4/1.4
Max AC Input/Output Current	1.4/1.4
Rated Input/Output Voltage/Range	220/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
THDi	<3% .
DC Injection Current	<0.5%ln
Power Factor Adjustment Range	0.9 leading-0.9lagging
Max. Efficiency	96.5%
Euro Efficiency	96.0%.
Equipment Protection
DC Polarity Reverse Connection Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes.
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
DC Component Monitoring	Yes
Communication Interface	RS485/RS232/CAN.
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	4000m
Dimensions (W/H/D)	173×158.5×31.5 (Excluding connectors and brackets)
Weight	1.85kg
Noise	<25 dB(A)
Type Of Cooling	Intelligent air cooling
Operating temperature range	–40 °C~60 °C (> 45°C, derating).
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	IP67
Warranty	15 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
