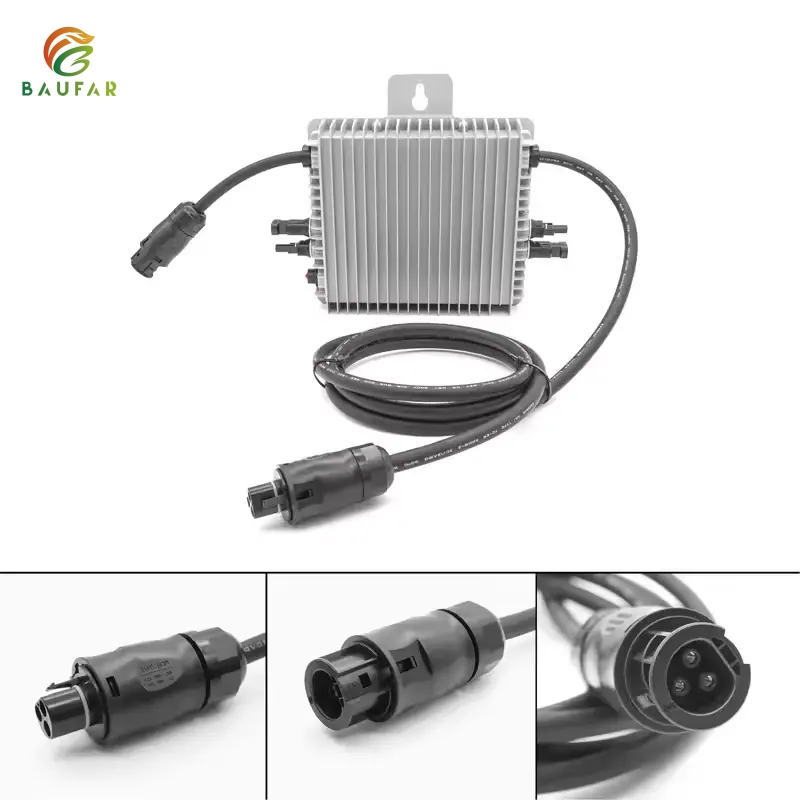

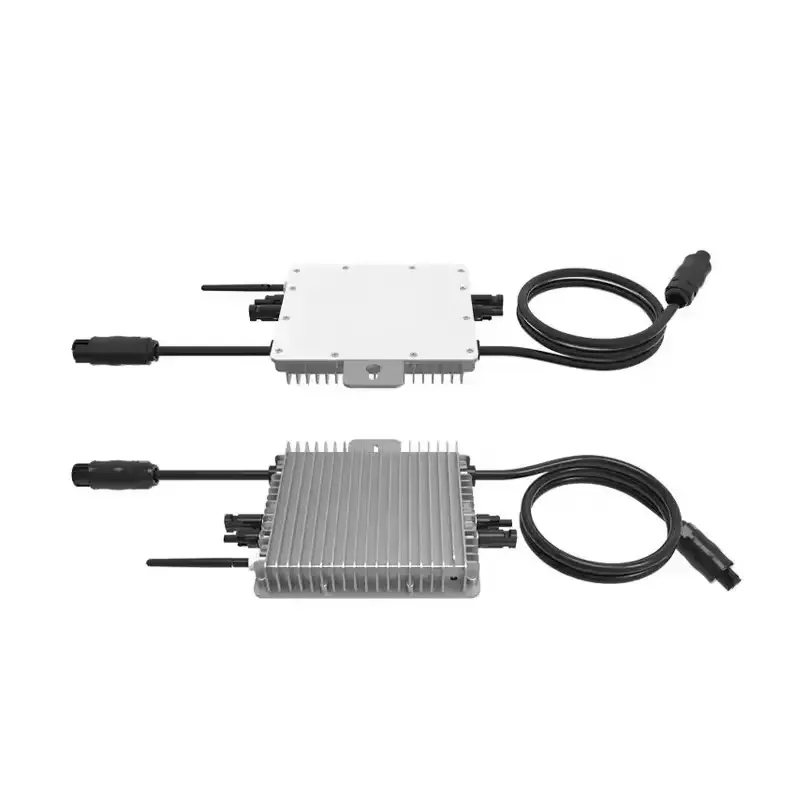

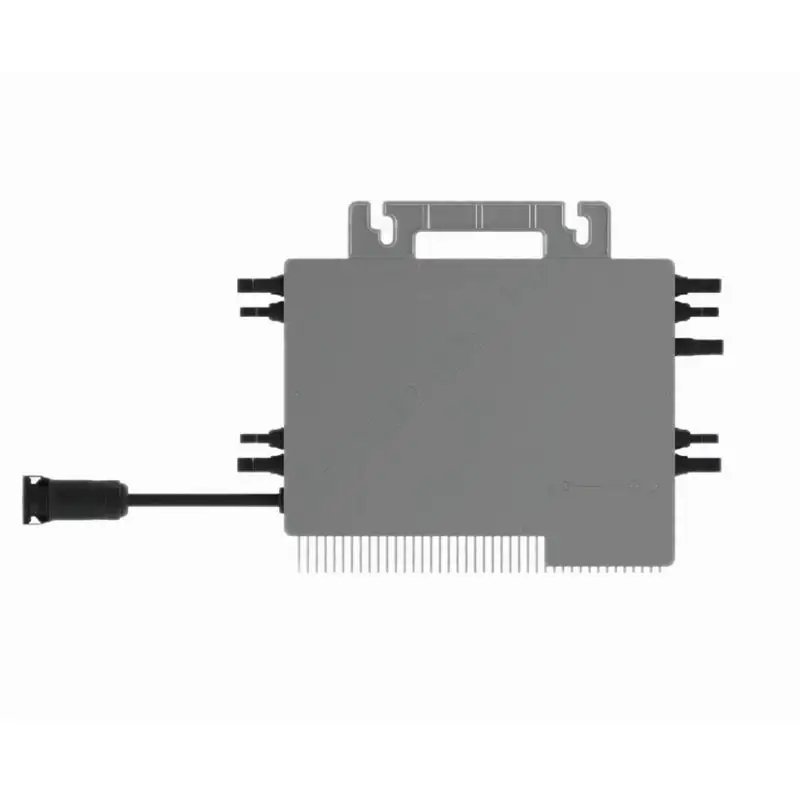

Deye 2250W Micro Inverter SUN-M225G4-EU-Q0

Name: Deye 2250W Micro Inverter SUN-M225G4-EU-Q0
SKU: SUN-M225G4-EU-Q0
Availability: InStock

$299.00

Brand Name: Deye

Model: SUN-M225G4-EU-Q0

Type: Single Phase | 4MPPT | Micro Inverter

SKU: SUN-M225G4-EU-Q0 Category: Solar Inverter

MODEL	SUN-M225G4-EU-Q0
PV String Input Data
Max PV Input Power	210-790w(4 Piece)
Max PV Input Voltage	60v
Start-up Voltage	20v
MPPT Voltage Range	25-55v
Rated PV Input Voltage	42.5v
Max. Operating PV Input Current	27+27+27+27
Max. Input Short Circuit Current	18+18+18+18.
No. of MPP Trackers	4/1
AC Output Side	Deye 2500W Micro Inverter
Rated AC Input/Output Active Power	2250W
Max AC Input/Output Apparent Power	2250Va
Rated AC Input/Output Current	10.3/9.8
Max AC Input/Output Current	10.3/9.8
Rated Input/Output Voltage/Range	220/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
THDi	<3% .
DC Injection Current	<0.5%ln
Power Factor Adjustment Range	0.9 leading-0.9lagging
Max. Efficiency	96.5%
Euro Efficiency	96.0%.
Equipment Protection
DC Polarity Reverse Connection Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes.
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
DC Component Monitoring	Yes
Communication Interface	RS485/RS232/CAN.
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	4000m
Dimensions (W/H/D)	358×255.5×36.5mm (Excluding Connectors and Brackets)
Weight	5.2kg
Noise	<25 dB(A)
Type Of Cooling	Intelligent air cooling
Operating temperature range	–40 °C~60 °C (> 45°C, derating).
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	IP67
Warranty	15 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
