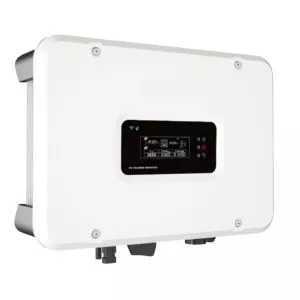

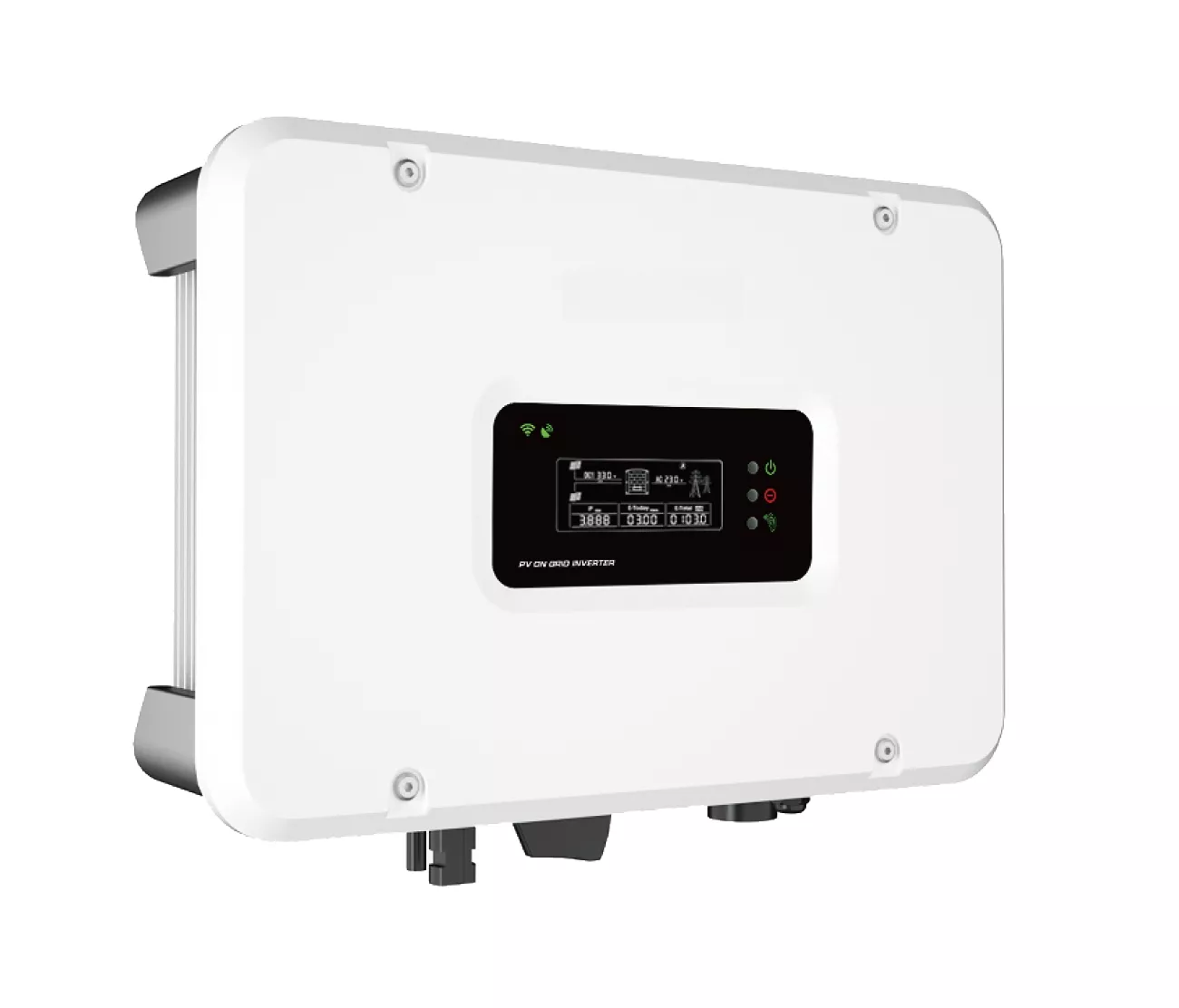

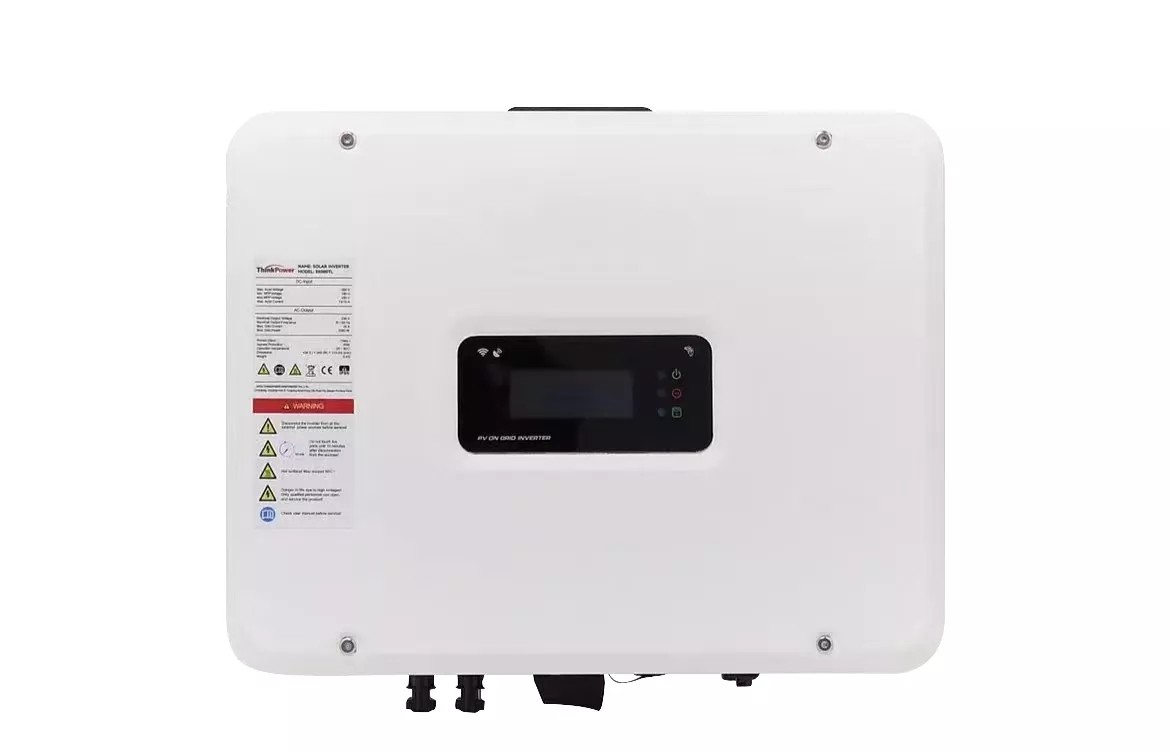

5KW Single Phase Grid Tie Inverter
5KW Single Phase Grid Tie Inverter
5KW Single Phase Grid Tie Inverter
| MODEL | BAU-S5000TL |
|---|---|
| MAX. DC POWER | 7500W |
| MAX. DC VOLTAGE(VDC) | 500 |
| MIN SYSTEM START | 75/100 |
| MPPT VOLTAGE RANGE | 100~450 |
| MAX. INPUT CURRENT(A) | 13A |
| MAX SHORT CURRENT MPPT | 17A |
| NUMBER OF MPP TRACKERS | 2 |
| STRINGS PER MPP TRACKER | 1 |
| NOMINAL OUTPUT POWER | 5000W. |
| MAX. OUTPUT POWER | 5500W. |
| NOMINAL OUTPUT VOLTAGE | 208- 240/180~270v |
| AC CONNECTION WITH PE | Single Phase |
| MAX OUTPUT CURRENT(A) | 25 |
| CURRENT DISTORTION(THDI) | ＜2.3% |
| MAX CONVERSION EFFICIENCY | 97.5% |
| EUROPEAN EFFICIENCY | 97.2% |
| MPPT EFFICIENCY | 99.9% |
| SHORT PROTECTION | yes |
| GRID MONITORING | yes |
| DC/AC SIDE SPD | yes |
| DIMENSIONS | 434*340*115mm |
| WEIGHT | 8kg |
| EMBEDDED DC SWITCH | Optional |
| NIGHT POWER CONSUMPTION | ＜0.2w |
| ISOLATION TYPE | Transformerless |
| PROTECTION DEGREE | IP65 |
| OPERATING TEMPERATURE | -25℃~+ 60℃ |
| COOLING CONCEPT | Smart Cooling |
| OPERATING ALTITUDE (M) | <2000m |
| ACOUSTIC NOISE LEVEL (DB) | ＜25 |
| DISPLAY | LCD |
| COMMUNICATION INTERFACE | WIFI; RS485 |
| WARRANTY | 5 years |
