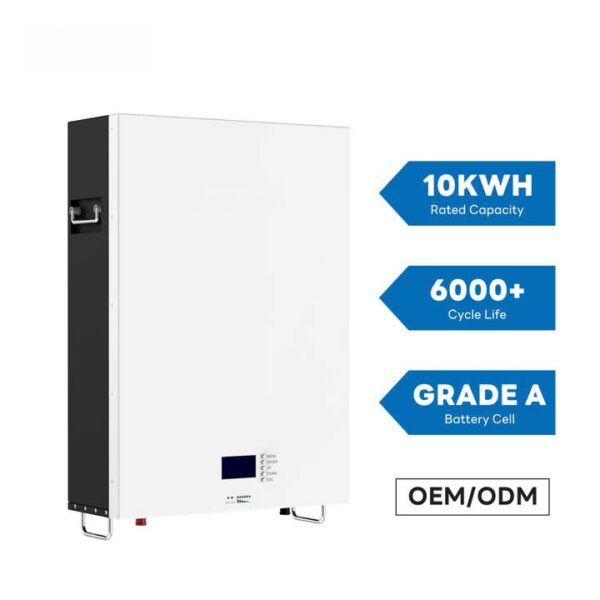

48V 200Ah Wall Mounted Energy Storage Lithium-Ion Battery
$1,033.00
Model: BAU-W-48200
Battery Type: LiFePo4 Battery
Rated voltage（v）: 48V
Rated capacity(Ah/10hr) :200AH
Certification: CE, UN38.3, MSDS, IEC
48V 200Ah Wall Mounted Energy Storage Lithium-Ion Battery
– Flexible Investment: 5kWh/10kWh modular design, scalable from 5 to 150kWh TUV.
– Certification: Battery IEC/UL standard.
– Perfect Compatibility: Compatible to most inverter brands on the market.
– Safety: BMS & Breaker two levels over current protection.
| MODEL | BAU-W-48200 |
|---|---|
| PRODUCT NAME: | 48V200Ah Battery |
| CELL COMBINATION | 15S2P |
| CYCLE LIFE | 6000 cycles @80% DOD, 0.5C |
| RATE VOLTAGE(VDC) | 48v |
| RATE CAPACITY(AH) | 200a |
| ENERGY STORAGE(KWH) | 9.6kwh |
| CHARGE VOLTAGE | 52.5V |
| MAX. CHARGE CURRENT(A) | 100A |
| MAX. DISCHARGE CURRENT(A) | 100A |
| DISCHARGE CUT-OFF VOLTAGE(VDC) | 40.8V |
| CHARGE CUT-OFF VOLTAGE(VDC) | 54.75V |
| CHARGE TEMPERATURE | 0 ℃ to 55℃ |
| DISCHARGE TEMPERATURE | -25 ℃ to 55℃ |
| STORAGE TEMPERATURE | -20℃ to 55 ℃ |
| IP CLASS | IP21 |
| MATERIAL SYSTEM | LiFePO4 |
| PACK DIMENSIONS L*W*H(MM) | 690*485*226 |
| PACKAGE DIMENSION L*W*H(MM) | 850*570*285 |
| NET WEIGHT(KG) | 85 |
| GROSS WEIGHT(KG) | 95 |
| PROTOCOL | CAN/RS485/RS232 |
| CERTIFICATE(PACK) | UN38.3, MSDS,CE-EMC |
