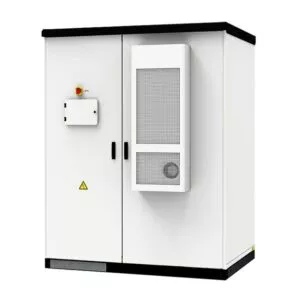

215kwh Commercial High Voltage Lithium Ion Battery
- Integrated Functionality

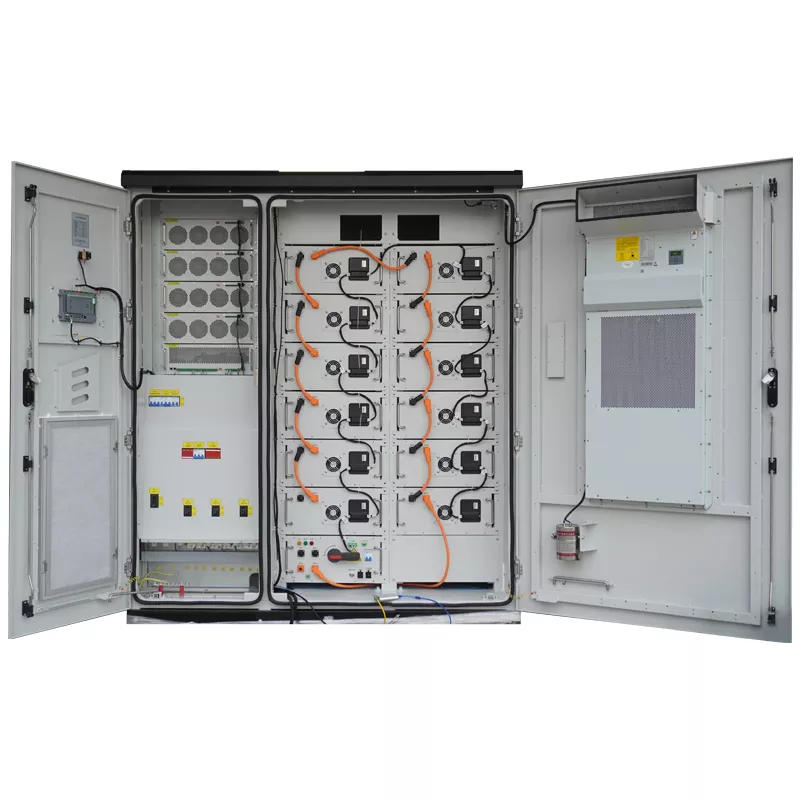

This system skillfully combines energy storage batteries, PCS, distribution, temperature control, fire safety, and water-immersion door magnets. Furthermore, it monitors operations, detects risks, and provides real-time status updates, ensuring reliability and efficiency. - Innovative Cabinet Design

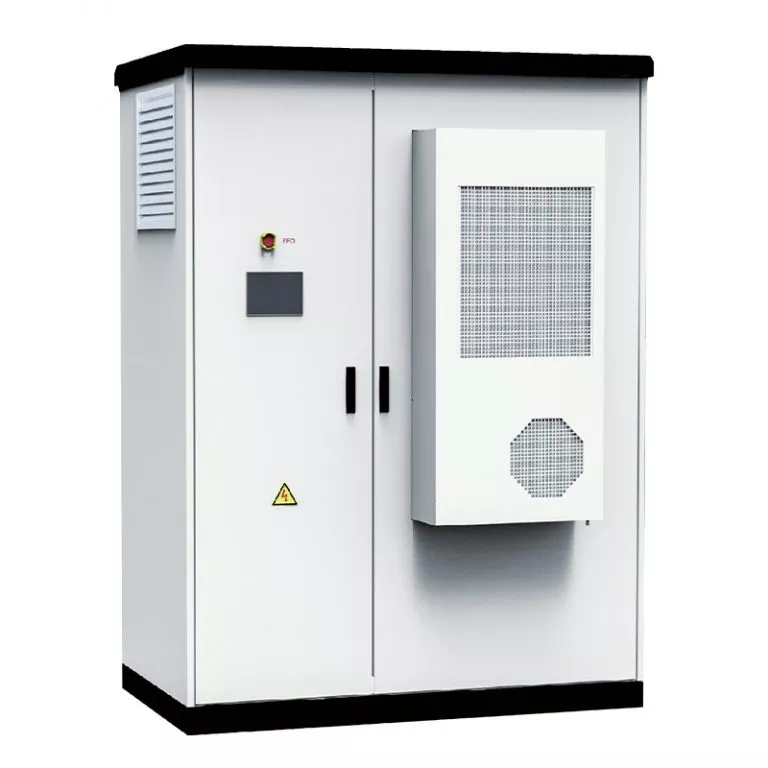

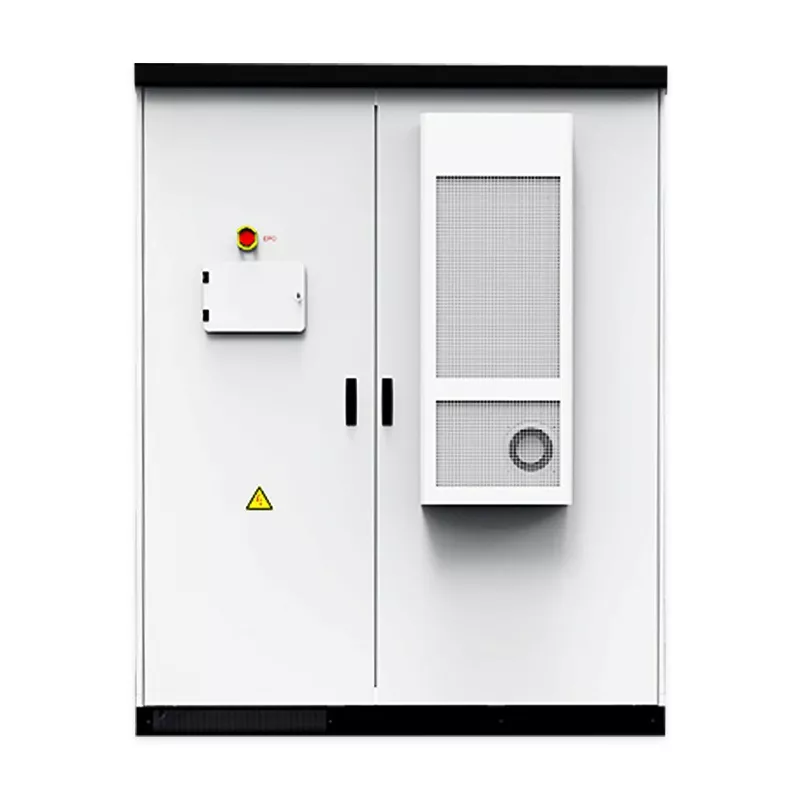

Moreover, its patented outdoor cabinet features smart cooling paths to block sand, dust, and rain. Additionally, the design is both easy to maintain and space-efficient, making it suitable for various environments. - Advanced Climate Control

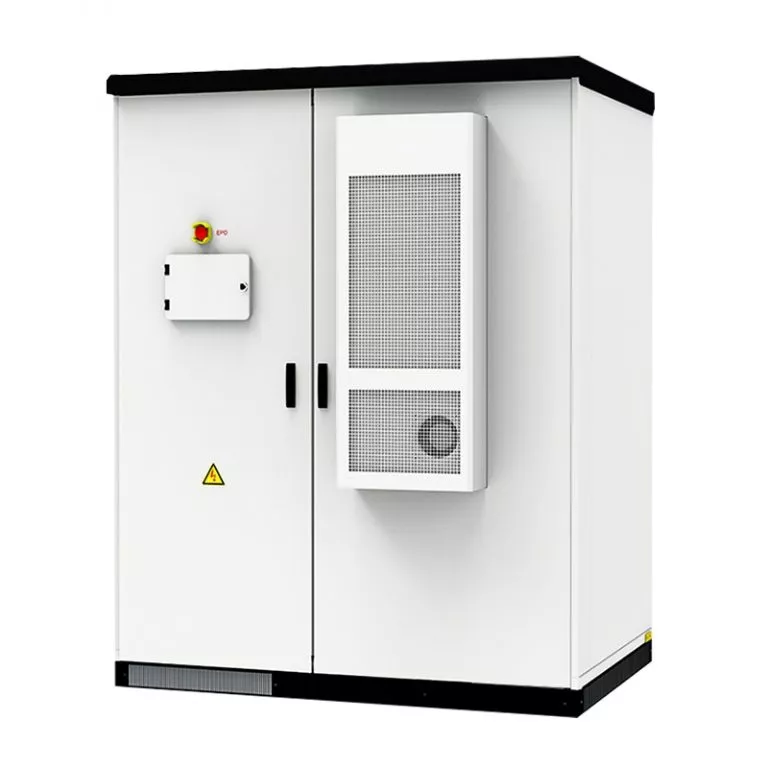

In addition, the door-integrated air conditioning not only saves space but also strengthens the cabinet’s structure and waterproofing, ensuring durability under harsh conditions. - Customizable Standardized Structure
Besides offering a unified and standardized design, the system provides an intuitive menu-driven setup. Furthermore, it supports customizable options such as photovoltaic charging modules and off-grid microgrid switches, allowing flexibility for diverse needs. - Wireless Operation
Additionally, the patented virtual synchronous generator technology ensures seamless wireless synchronization. As a result, the system allows for efficient on-grid and off-grid switching from a distance. - Direct System Control
Finally, the local control panel offers users the ability to monitor performance, develop energy strategies, and upgrade devices remotely. Thus, the system ensures ease of operation and adaptability across all use cases.
MODEL | BAU-eBank-215FS2 |
---|---|
Battery Specification | |
Battery Type | LFP |
Cell capacity | 3.2V/280Ah |
PACK config | 1P20S |
PACK Qty | 12 |
Rated capacity | 215kWh |
Rated voltage | 768V |
Voltage range | 636 – 864Vdc |
Charge/Discharge rate | 0.5C Rated |
DOD | 95% |
Cooling system | Air Cooling |
Fire fighting system | Two Level Protection.Standard:Aerosol+HFC-227ea,Optional:PERFLUORO |
AC Specifications | |
Rated voltage | 400Vac |
Voltage range | 230 / 400Vac |
Frequency range | 50/60+2.5Hz (50/60Hz self-adaption) |
Grid system | 3P+N+PE |
solation transformer | No |
Rated power | 100kW |
Peak power | 110kW |
Rated current | 144A |
Over load capacity | ≤110% Continues Running ≤120%1Min |
Power factor | -0.99 ~ +0.99 |
On grid THDl/THDV(Off grid) | <3%, Full load |
STS module power capacity | 200kW |
Transfer time(On-off Grid) | ≤20ms |
PV Specification | |
Max. PV input voltage | 1000V |
Max. PV input power | 110kW |
No. of MPPT/String per MPPT | 2/1 |
MPPT voltage range | 350 – 1000V |
MPPT current | 200A (100A/100A) |
MPPT efficiency | 99% |
System Specification | |
Temperature range | -25°C ~ 65°C. >45°C power derating |
Storage temperature | -40 ~ 75°C |
Noice | <70 dB |
Dimension W*D*H(mm) | 1800*1250*2000 |
Weight(kg) | 2600 |
IP class | IP54 |
Cooling type | Industry level Air Conditional |
Communication protocol | Modbus RTU, ModbUs TCP, IEC104, MQTT, Etc. |
Communication port | RS485/RJ45/4G/WIFI/DIDO |
Certificates | UN38.3, MSDS, CE-EMC, IEC62619 |
