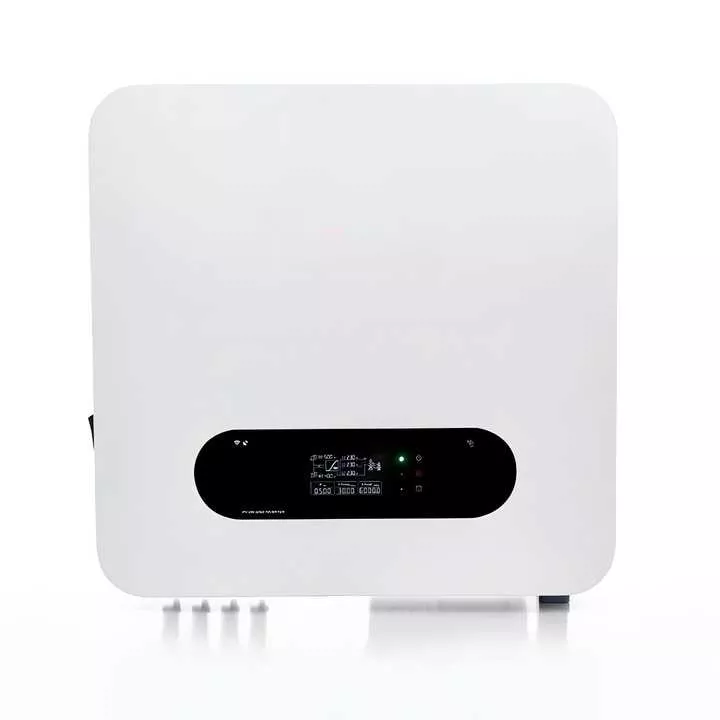

20KW Three Phase Grid Tie Inverter

Name: 20KW Three Phase Grid Tie Inverter
SKU: BAU-TP20KTL
Availability: InStock

$470.00

5-25kw
Three Phase Grid Tie Inverter

SKU: BAU-TP20KTL Category: Solar Inverter

MODEL	BAU-TP20KTL
INPUT(DC)
MAX. DC POWER	30000W
MAX. DC VOLTAGE(VDC)	1000
MIN SYSTEM START	250
MPPT VOLTAGE RANGE(VDC)	200~850
MAX. INPUT CURRENT(A)	26A/26A
MAX. SHORT MPPT	34A/34A
NUMBER OF MPP TRACKERS	2
STRINGS PER MPP TRACKER	2
OUTPUT (AC)
NOMINAL OUTPUT POWER	20000W
MAX. OUTPUT POWER	22000W
NOMINAL OUTPUT VOLTAGE/RANGE (V)	400Vac/ 380-440V
AC CONNECTION WITH PE	Three Phase
MAX OUTPUT CURRENT(A)	25
CURRENT DISTORTION(THDI)	＜1.5%
EFFICIENCY
MAXIMUM CONVERSION EFFICIENCY	98.5%
EUROPEAN EFFICIENCY	98%
MPPT EFFICIENCY	99.9%
SAFETY AND PROTECTION
DC REVERSE-POLARITY PROTECTION	yes
OVERVOLTAGE PROTECTION	yes
SHORT CIRCUIT PROTECTION	yes
LEAKAGE CURRENT PROTECTION	yes
GRID MONITORING	yes
DC/AC SIDE SPD	yes
GENERAL PARAMETERS
DIMENSIONS	480/476/157mm
WEIGHT	16kg
EMBEDDED DC SWITCH	Optional
NIGHT POWER CONSUMPTION (W)	＜0.2
ISOLATION TYPE	Transformerless
PROTECTION DEGREE	IP65
OPERATING TEMPERATURE RANGE	-25℃~+ 60℃
COOLING CONCEPT	Smart Cooling
ACOUSTIC NOISE LEVEL (DB)	＜25
DISPLAY	Graphic LCD
COMMUNICATION INTERFACE	RS485/WIFI/GPRS
WARRANTY	Standard 5 years
