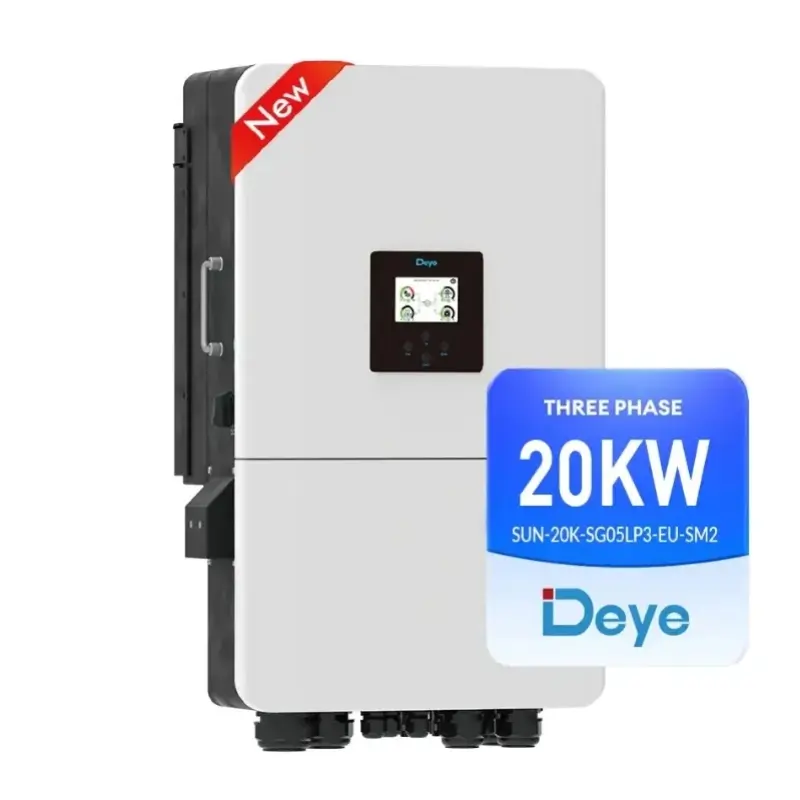

20Kw Solar Inverter Deye SUN-20K-SG05LP3-EU-SM2

Name: 20Kw Solar Inverter Deye SUN-20K-SG05LP3-EU-SM2
SKU: SUN-20K-SG05LP3-EU-SM2
Availability: InStock

20Kw Solar Inverter Deye SUN-20K-SG05LP3-EU-SM2

$3,359.00

Brand Name:Deye

Model: SUN-20K-SG05LP3-EU-SM2

Type: Three Phase Low Voltage

INQUIRY NOW

SKU: SUN-20K-SG05LP3-EU-SM2 Category: Solar Inverter

Description
Reviews (0)

20Kw Solar Inverter Deye SUN-20K-SG05LP3-EU-SM2 Low Voltage Battery Three Phase Hybrid Inverter

Three Phase
2 MPPT
Hybrid Inverter
LV Battery Supported

MODEL	SUN-20K-SG05LP3-EU-SM2
PV String Input Data
Max. PV Access Power	40kw.
Max PV Input Power	32kw
Max PV Input Voltage	800v
Start-up Voltage	160v
MPPT Voltage Range	160-650v
Rated PV Input Voltage	550v
Max. Operating PV Input Current	36+36A
Max. Input Short Circuit Current	54+54A.
No. of MPP Trackers	2/2+2
AC Input/Output Data	20Kw Solar Inverter Deye
Rated AC Input/Output Active Power	20kW
Max AC Input/Output Apparent Power	22kVa
Peak Power (off-grid)	2 times of rated power,10s.
Rated AC Input/Output Current	30.4/29
Max AC Input/Output Current	33.4/31.9
RMax Continuous AC Passthrough (grid to load)	70A.
Rated Input/Output Voltage/Range	220V/380v,230/400v 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
THDi	<3% (of nominal power).
DC Injection Current	<0.5%ln
Power Factor Adjustment Range	0.8 leading-0.8lagging
Max. Efficiency	97.6%.
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range	40-60v
Max.Charging Current	260A
Max.Discharging Current	260A
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
Communication Interface	RS485/RS232/CAN.
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	3000m
Dimensions (W/H/D)	4560×7500×2685mm
Weight	51.9kg
Noise	＜60 dB(A)
Type Of Cooling	Intelligent air cooling
Operating temperature range	–40 °C~60 °C (> 45°C, derating).
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	IP65
Warranty	5 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
