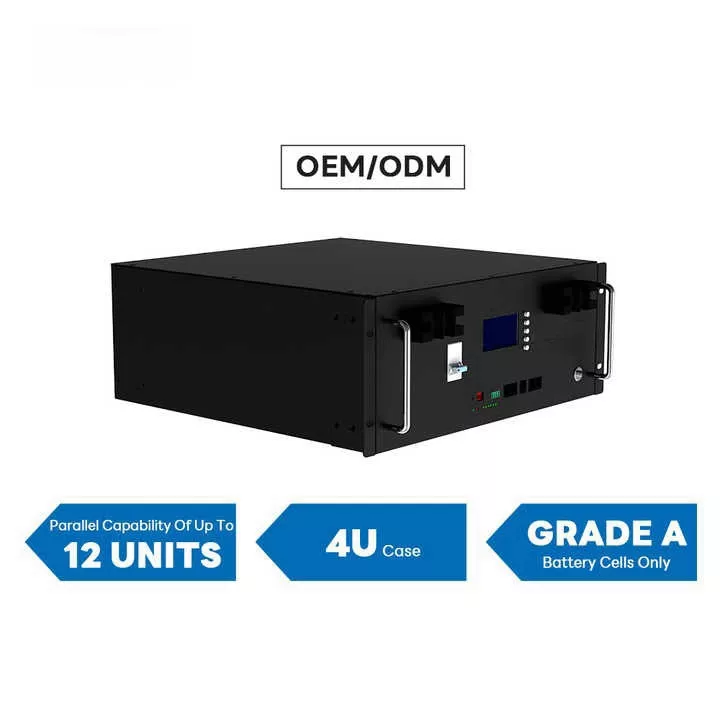

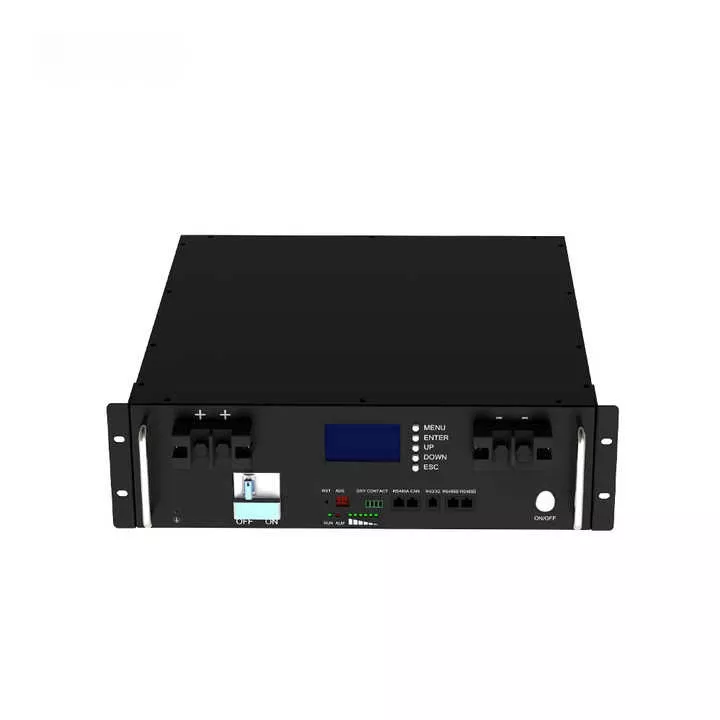

10kwh 51.2V 200Ah Lithium Ion Battery
$990.00
Model: BAU-Rack-51200
Battery Type: LiFePo4 Battery
Rated voltage（v）: 51.2V
Rated capacity(Ah/10hr) :200AH
Certification: CE, UN38.3, MSDS, IEC
10kwh 51.2V 200Ah Lithium Ion Battery

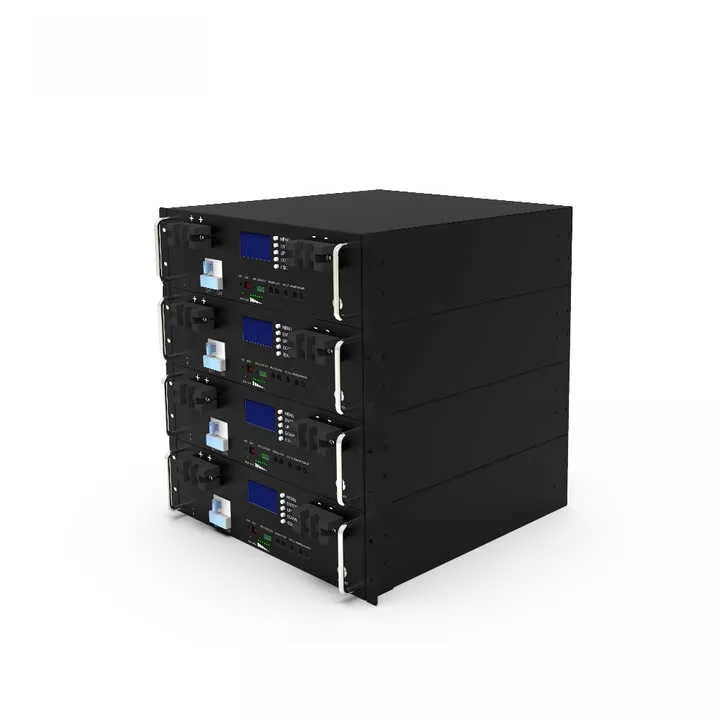

– Flexible Investment: 5kWh/10kWh modular design, scalable from 5 to 150kWh TUV.
– Certification: Battery IEC/UL standard.
– Perfect Compatibility: Compatible to most inverter brands on the market.

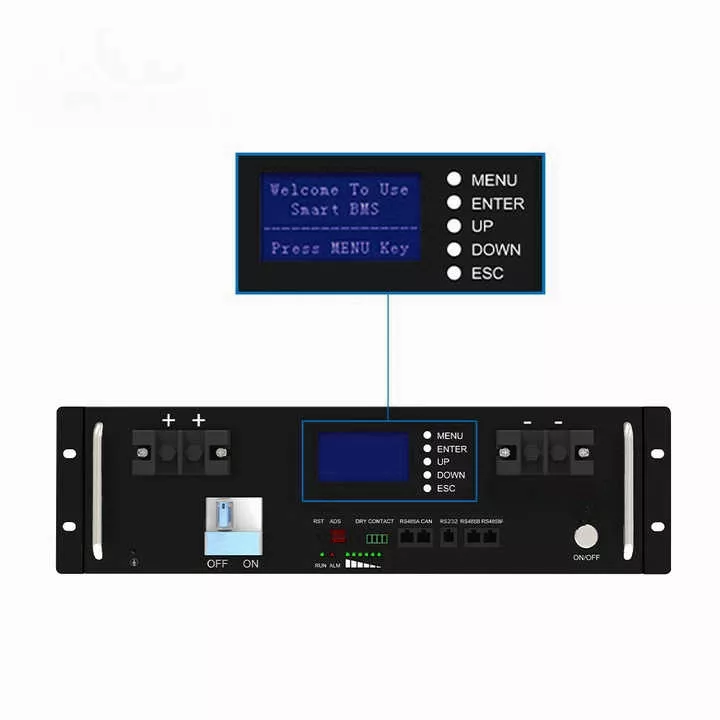

– Safety: BMS & Breaker two levels over current protection.
| MODEL | BAU-Rack-51200 |
|---|---|
| PRODUCT NAME: | 51.2V200Ah Battery |
| CELL COMBINATION | 16S2P |
| CYCLE LIFE | 6000 cycles @80% DOD, 0.5C |
| RATE VOLTAGE(VDC) | 51.2v |
| RATE CAPACITY(AH) | 200a |
| ENERGY STORAGE(KWH) | 10.24kwh |
| CHARGE VOLTAGE | 56V |
| MAX. CHARGE CURRENT(A) | 100A |
| MAX. DISCHARGE CURRENT(A) | 100A |
| DISCHARGE CUT-OFF VOLTAGE(VDC) | 43.2V |
| CHARGE CUT-OFF VOLTAGE(VDC) | 58.4V |
| CHARGE TEMPERATURE | 0 ℃ to 55℃ |
| DISCHARGE TEMPERATURE | -25 ℃ to 55℃ |
| STORAGE TEMPERATURE | -20℃ to 55 ℃ |
| IP CLASS | IP21 |
| MATERIAL SYSTEM | LiFePO4 |
| PACK DIMENSIONS L*W*H(MM) | 680*442*178 (4U) |
| PACKAGE DIMENSION L*W*H(MM) | 820*625*310 |
| NET WEIGHT(KG) | 88 |
| GROSS WEIGHT(KG) | 97 |
| PROTOCOL | CAN/RS485/RS232 |
| CERTIFICATE(PACK) | UN38.3, MSDS,CE-EMC |
